SKU: POS8L.EU

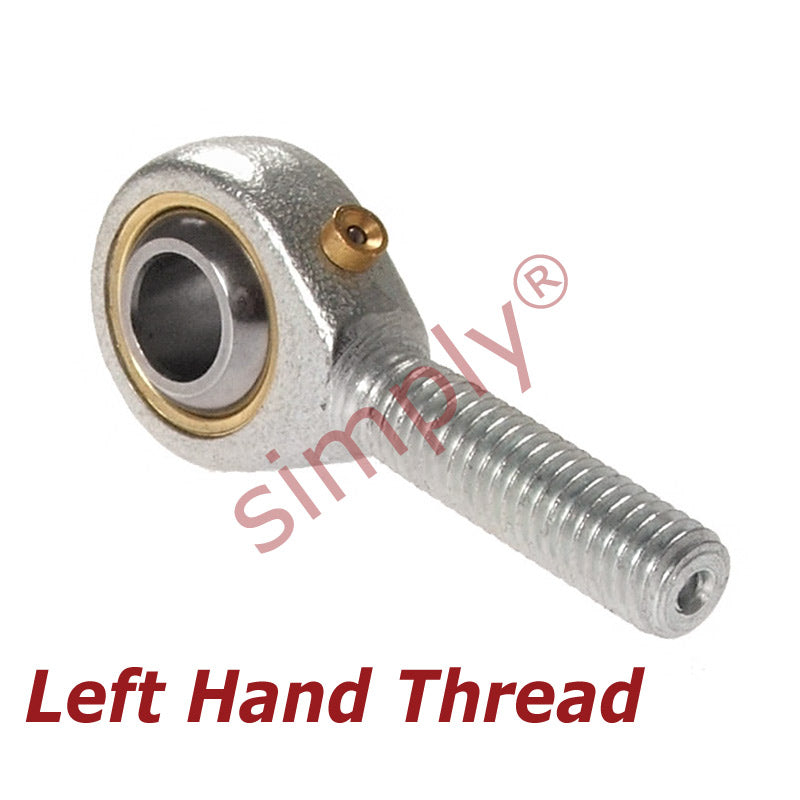

Budget POS8L Left Hand Steel / Bronze Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Budget POS8L Left Hand Steel / Bronze Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
Regular price
Rs. 631.93
ex VAT
Regular price
Sale price
Rs. 631.93
ex VAT
Equivalent to: SALKAC8M MBL-M08
In stock
Price Break
10+
Rs. 562.42
19+
Rs. 530.82
29+
Rs. 524.50
39+
Rs. 518.18
49+
Rs. 511.86
74+
Rs. 505.54
99+
Rs. 473.95
199+
Rs. 467.63
249+
Rs. 461.31
499+
Rs. 454.99
999+
Rs. 442.35
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC8M MBL-M08
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 8mm
- Liner Type:
- Bronze Lined
Technical
Technical
| d | 8mm |
|---|---|
| B | 12mm |
| r1 | 0.3mm |
| C1 | 9mm |
| d1 max | 10.3mm |
| d2 | 22mm |
| d3 | M8x1.25 |
| h | 42mm |
| l1 | 25mm |
| l2 | 53mm |
| Ball diameter | 5/8 inch |
| Dynamic load Cr | 7.1 kN |
| Static load Cor | 8.8 kN |
| Max angle α | 14 |
| Weight | 0.032 kg |
