SKU: POS6.EU

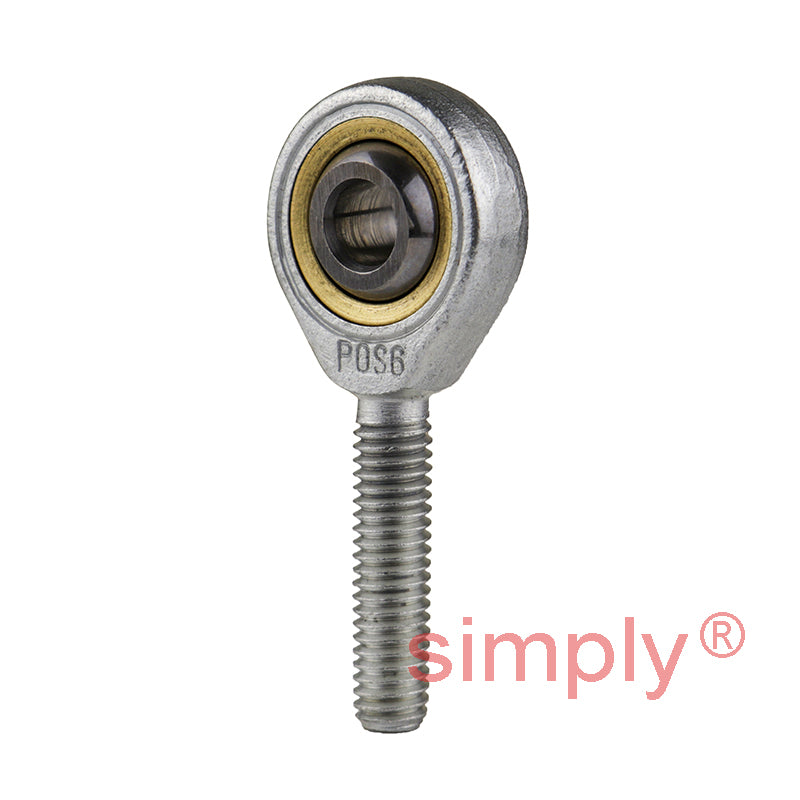

Budget POS6 Right Hand Steel / Bronze Lined Plain Male Rod End 6mm Bore M6x1 Thread
Budget POS6 Right Hand Steel / Bronze Lined Plain Male Rod End 6mm Bore M6x1 Thread
Regular price
Rs. 565.84
ex VAT
Regular price
Sale price
Rs. 565.84
ex VAT
Equivalent to: GAKFR6PB SAKAC6M SM6 MB-M06
In stock
Price Break
10+
Rs. 503.60
19+
Rs. 475.31
29+
Rs. 469.65
39+
Rs. 463.99
49+
Rs. 458.33
74+
Rs. 452.67
99+
Rs. 424.38
199+
Rs. 418.72
249+
Rs. 413.06
499+
Rs. 407.40
999+
Rs. 396.09
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR6PB SAKAC6M SM6 MB-M06
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M6x1
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Liner Type:
- Bronze Lined
Technical
Technical
| d | 6mm |
|---|---|
| B | 9mm |
| r1 | 0.3mm |
| C1 | 6.75mm |
| d1 max | 8.9mm |
| d2 | 18mm |
| d3 | M6x1 |
| h | 36mm |
| l1 | 22mm |
| l2 | 45mm |
| Ball diameter | 1/2 inch |
| Dynamic load Cr | 4.3 kN |
| Static load Cor | 4.8 kN |
| Max angle α | 13 |
| Weight | 0.019 kg |
