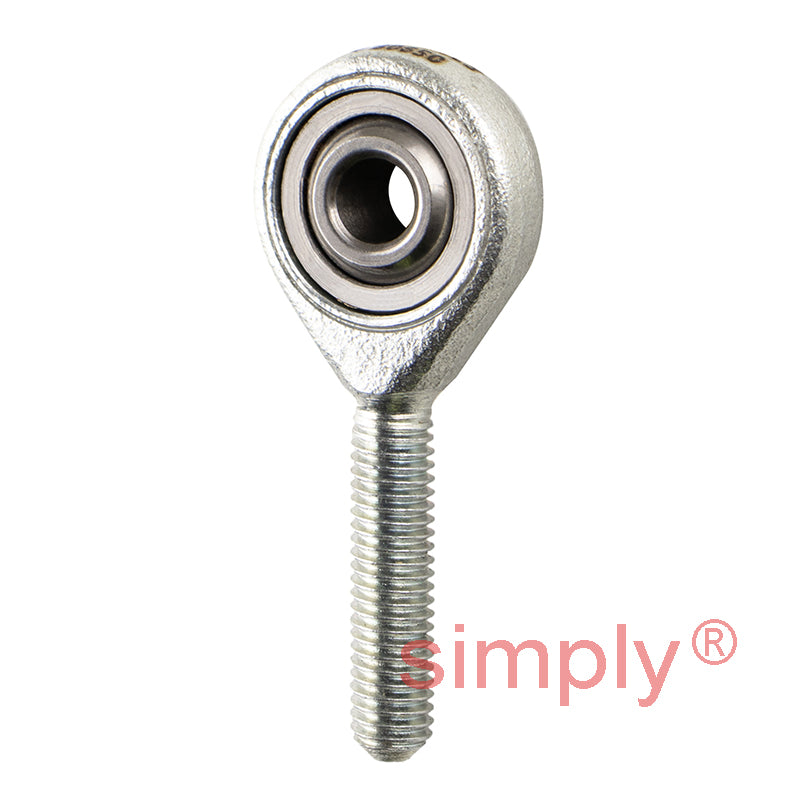

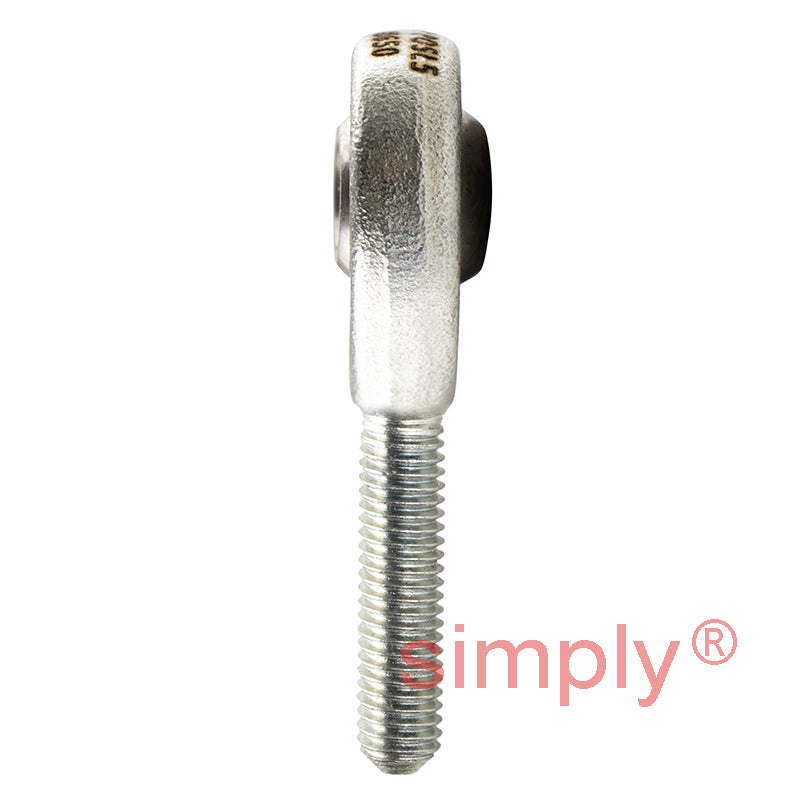

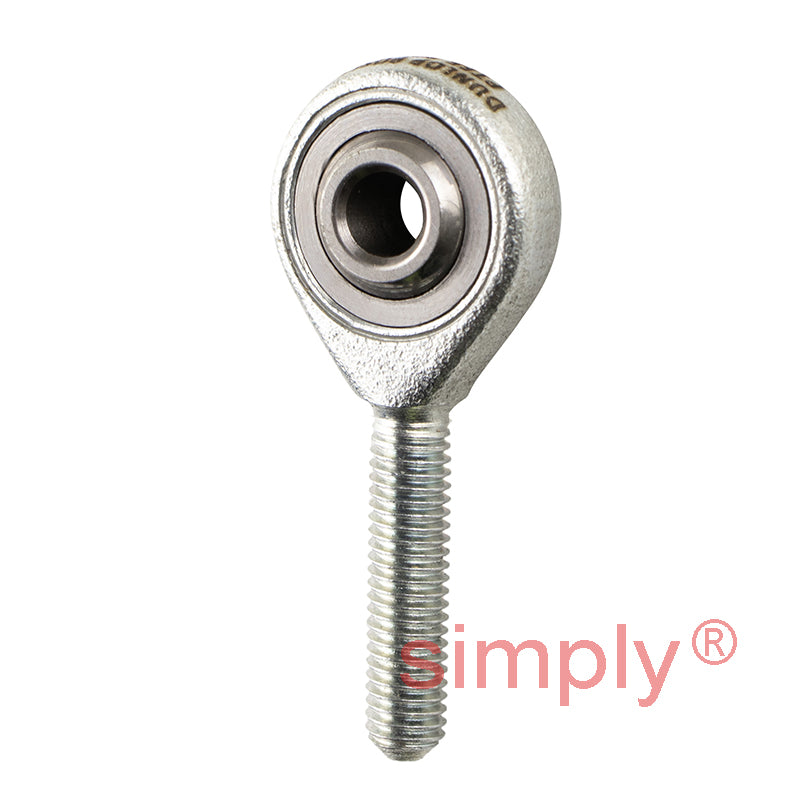

Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
Regular price
Rs. 1,609.39
ex VAT
Regular price
Sale price
Rs. 1,609.39
ex VAT
In stock
Price Break
10+
Rs. 1,432.36
19+
Rs. 1,351.89
29+
Rs. 1,335.79
39+
Rs. 1,319.70
49+
Rs. 1,303.61
74+
Rs. 1,287.51
99+
Rs. 1,207.04
199+
Rs. 1,190.95
249+
Rs. 1,174.85
499+
Rs. 1,158.76
999+
Rs. 1,126.57
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M5x0.8
- Thread Direction:
- Left Hand
- Liner Type:
- PTFE Lined
Technical
Technical
| d | 5mm |
|---|---|
| B | 8mm |
| r1 | 0.3mm |
| C1 | 6mm |
| d1 max | 7.7mm |
| d2 | 16mm |
| d3 | M5x0.8 |
| h | 33mm |
| l1 | 20mm |
| l2 | 41mm |
| Ball diameter | 7/16 inch |
| Dynamic load Cr | 3.3 kN |
| Static load Cor | 3.4 kN |
| Max angle α | 13 |
| Weight | 0.0125 kg |
