SKU: POS28L.EU

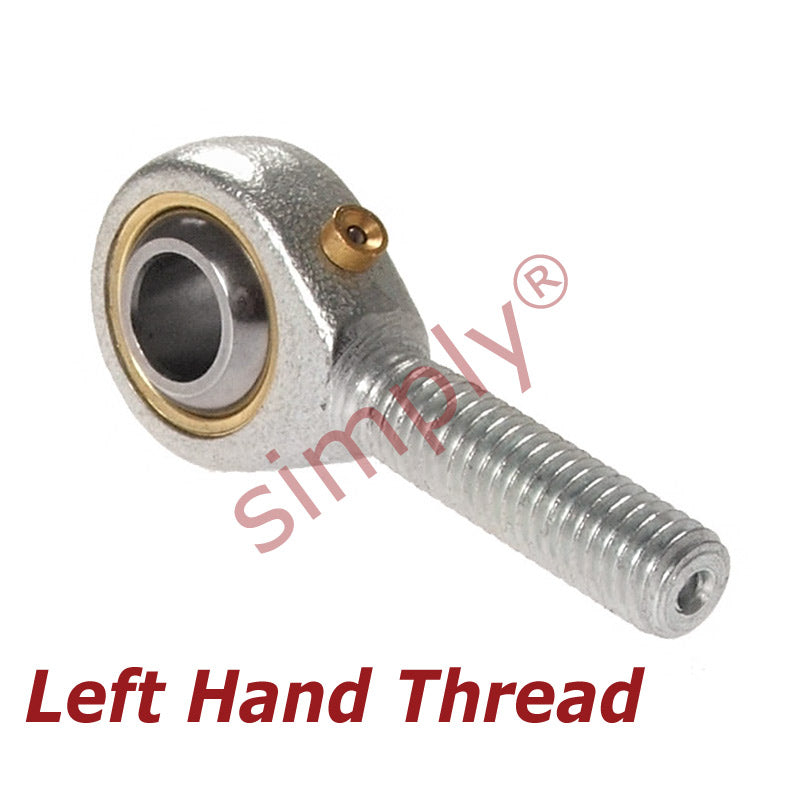

Budget POS28L Left Hand Steel / Bronze Lined Plain Male Rod End 28mm Bore M27x2 Thread
Budget POS28L Left Hand Steel / Bronze Lined Plain Male Rod End 28mm Bore M27x2 Thread
Regular price
Rs. 18,937.82
Regular price
Sale price
Rs. 18,937.82
Taxes included.
In stock
Price Break
10+
Rs. 16,854.66
19+
Rs. 15,907.77
29+
Rs. 15,718.39
39+
Rs. 15,529.01
49+
Rs. 15,339.63
74+
Rs. 15,150.26
99+
Rs. 14,203.37
199+
Rs. 14,013.99
249+
Rs. 13,824.61
499+
Rs. 13,635.23
999+
Rs. 13,256.47
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M27x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 28mm
- Material:
- Bronze Lined
Technical
Technical
| d | 28mm |
|---|---|
| B | 35mm |
| r1 | 0.6mm |
| C1 | 25mm |
| d1 max | 32.29mm |
| d2 | 66mm |
| d3 | M27x2 |
| h | 103mm |
| l1 | 62mm |
| l2 | 136mm |
| Ball diameter | 1-7/8 inch |
| Dynamic load Cr | 59.5 kN |
| Static load Cor | 88.7 kN |
| Max angle α | 15 |
| Weight | 0.875 kg |
