SKU: POS22.EU

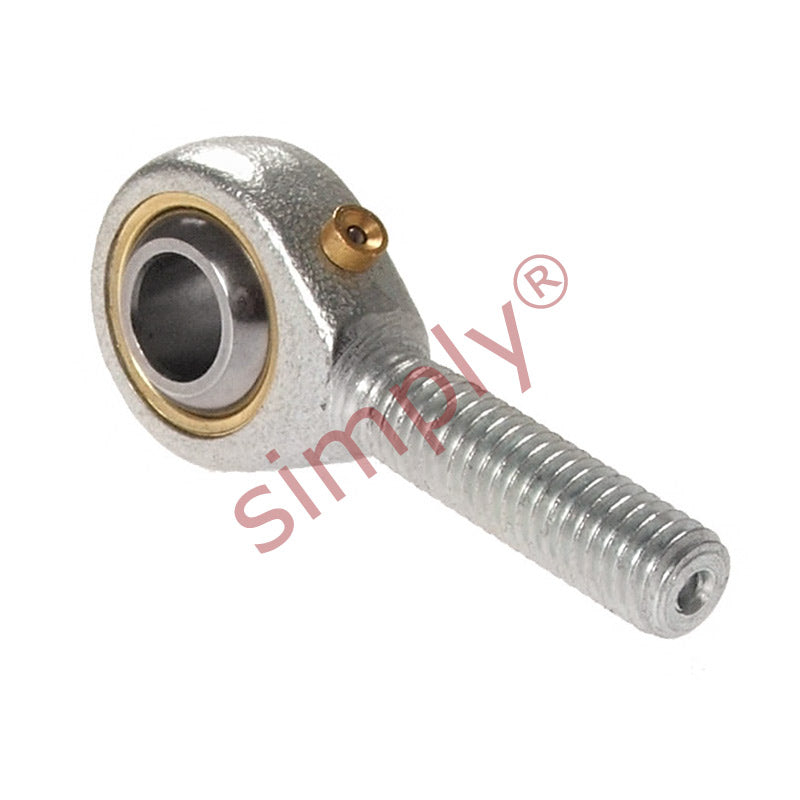

Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
Regular price
Rs. 2,173.76
Regular price
Sale price
Rs. 2,173.76
Taxes included.
Equivalent to: GAKFR22PB SAKAC22M SM22 MB-M22
In stock
Price Break
10+
Rs. 1,934.65
19+
Rs. 1,825.96
29+
Rs. 1,804.22
39+
Rs. 1,782.48
49+
Rs. 1,760.75
74+
Rs. 1,739.01
99+
Rs. 1,630.32
199+
Rs. 1,608.58
249+
Rs. 1,586.84
499+
Rs. 1,565.11
999+
Rs. 1,521.63
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR22PB SAKAC22M SM22 MB-M22
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M22x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 22mm
- Material:
- Bronze Lined
Technical
Technical
| d | 22mm |
|---|---|
| B | 28mm |
| r1 | 0.6mm |
| C1 | 20mm |
| d1 max | 25.8mm |
| d2 | 50mm |
| d3 | M22x1.5 |
| h | 84mm |
| l1 | 51mm |
| l2 | 109mm |
| Ball diameter | 1-1/2 inch |
| Dynamic load Cr | 38.1 kN |
| Static load Cor | 42.6 kN |
| Max angle α | 15 |
| Weight | 0.435 kg |
