SKU: POS20L.EU

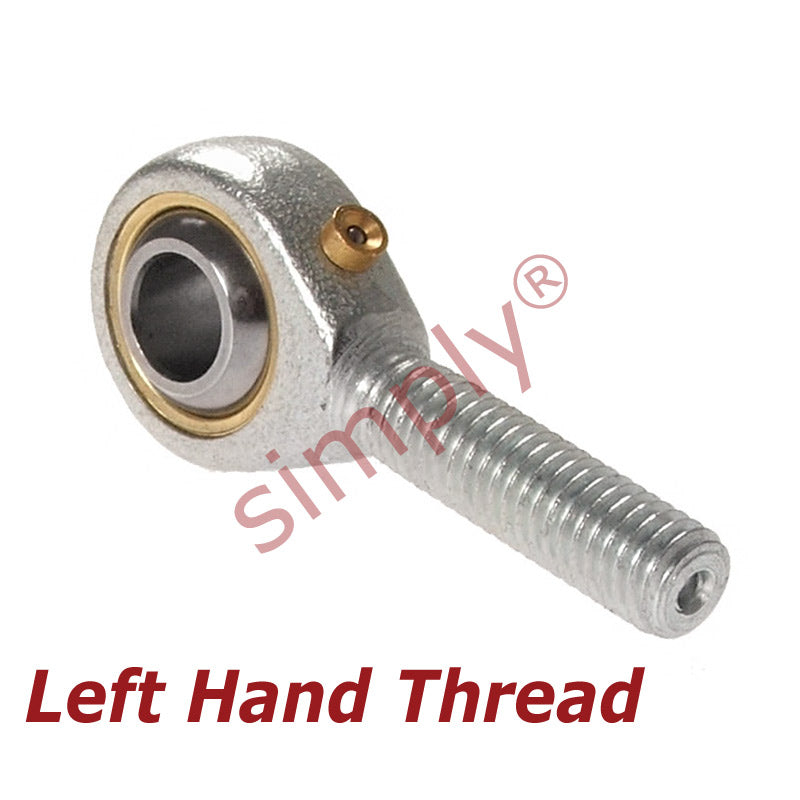

Budget POS20L Left Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
Budget POS20L Left Hand Steel / Bronze Lined Plain Male Rod End 20mm Bore M20x1.5 Thread
Regular price
Rs. 2,050.86
Regular price
Sale price
Rs. 2,050.86
Taxes included.
Equivalent to: SALKAC20M MBL-M20
In stock
Price Break
10+
Rs. 1,825.27
19+
Rs. 1,722.72
29+
Rs. 1,702.21
39+
Rs. 1,681.71
49+
Rs. 1,661.20
74+
Rs. 1,640.69
99+
Rs. 1,538.15
199+
Rs. 1,517.64
249+
Rs. 1,497.13
499+
Rs. 1,476.62
999+
Rs. 1,435.60
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC20M MBL-M20
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| B | 25mm |
| r1 | 0.6mm |
| C1 | 18mm |
| d1 max | 24.3mm |
| d2 | 46mm |
| d3 | M20x1.5 |
| h | 78mm |
| l1 | 47mm |
| l2 | 101mm |
| Ball diameter | 1-3/8 inch |
| Dynamic load Cr | 31.4 kN |
| Static load Cor | 36.2 kN |
| Max angle α | 14 |
| Weight | 0.34 kg |
