SKU: POS18L.EU

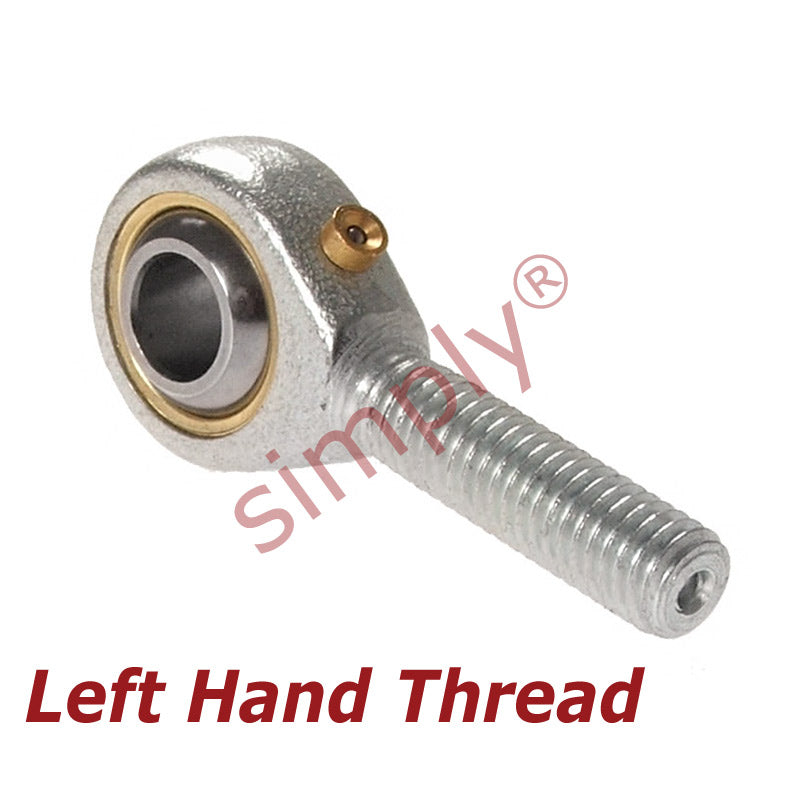

Budget POS18L Left Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
Budget POS18L Left Hand Steel / Bronze Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
Regular price
Rs. 1,969.23
ex VAT
Regular price
Sale price
Rs. 1,969.23
ex VAT
Equivalent to: SALKAC18M MBL-M18
In stock
Price Break
10+
Rs. 1,752.61
19+
Rs. 1,654.15
29+
Rs. 1,634.46
39+
Rs. 1,614.77
49+
Rs. 1,595.08
74+
Rs. 1,575.38
99+
Rs. 1,476.92
199+
Rs. 1,457.23
249+
Rs. 1,437.54
499+
Rs. 1,417.85
999+
Rs. 1,378.46
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SALKAC18M MBL-M18
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 18mm
- Liner Type:
- Bronze Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h | 72mm |
| l1 | 44mm |
| l2 | 93mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2 kN |
| Static load Cor | 30.8 kN |
| Max angle α | 15 |
| Weight | 0.26 kg |
