SKU: POS18.EC

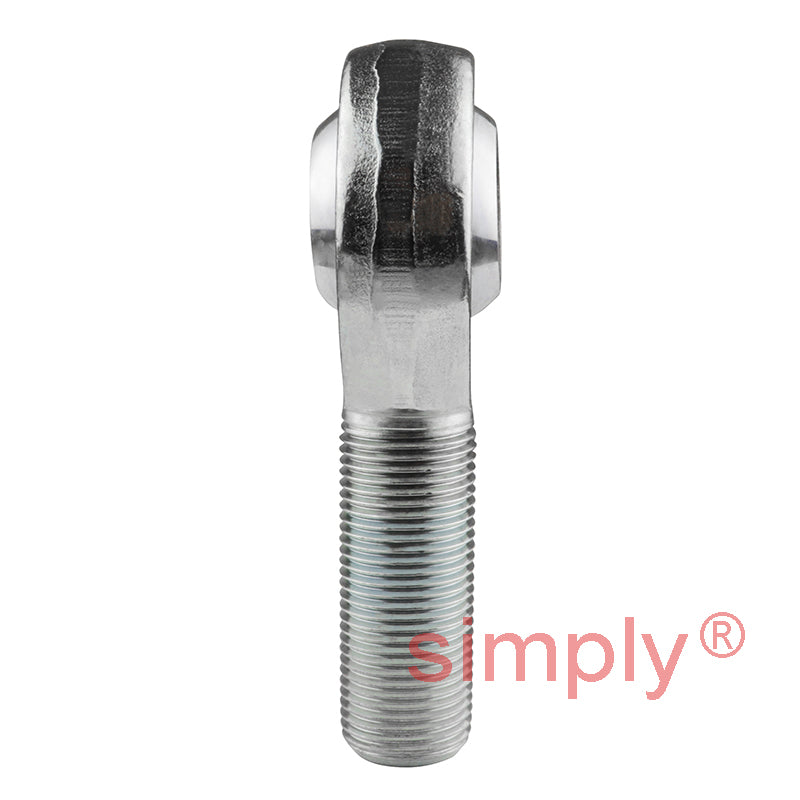

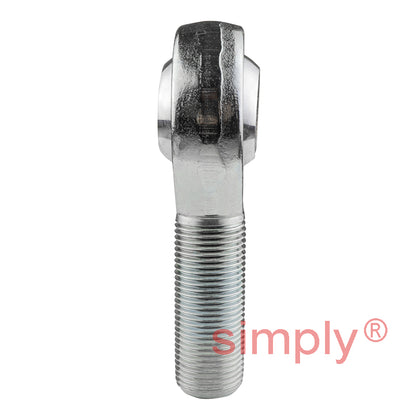

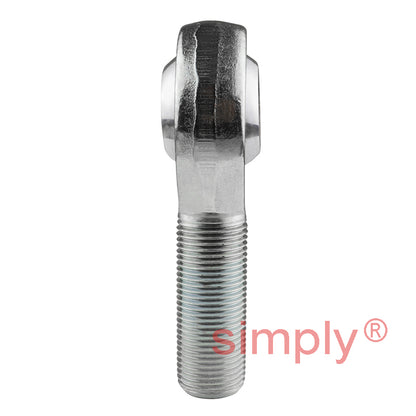

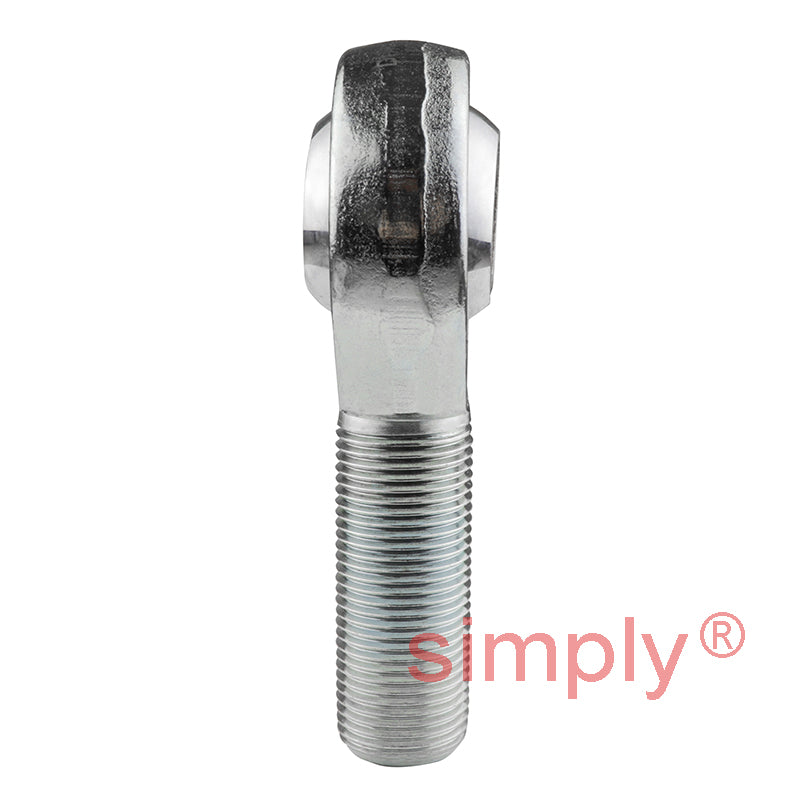

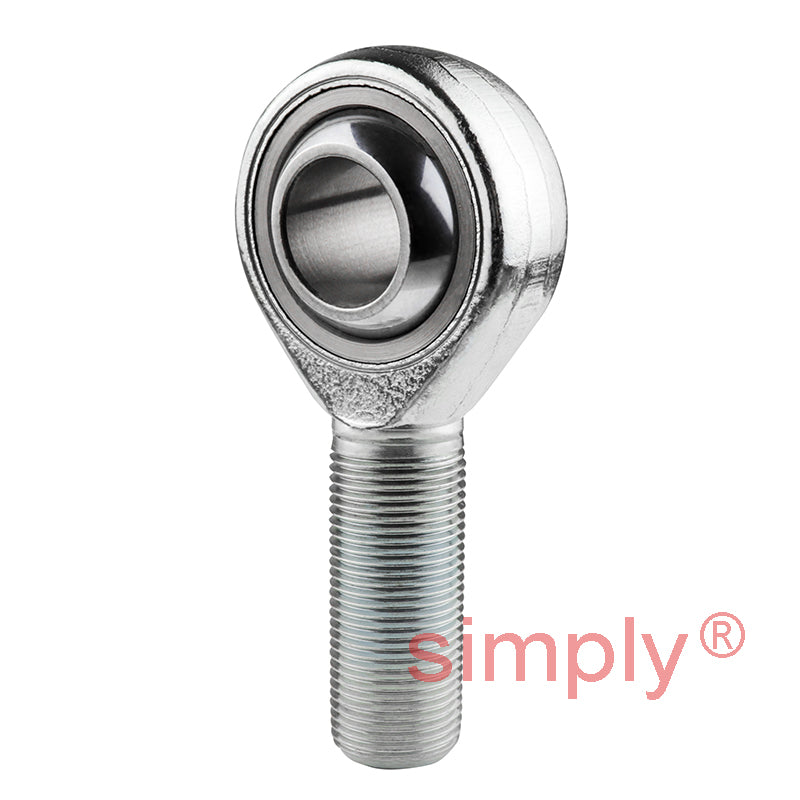

Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
Regular price
Rs. 1,025.67
ex VAT
Regular price
Sale price
Rs. 1,025.67
ex VAT
In stock
Price Break
10+
Rs. 912.85
19+
Rs. 861.56
29+
Rs. 851.31
39+
Rs. 841.05
49+
Rs. 830.79
74+
Rs. 820.54
99+
Rs. 769.25
199+
Rs. 759.00
249+
Rs. 748.74
499+
Rs. 738.48
999+
Rs. 717.97
Couldn't load pickup availability
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread Direction:
- Right Hand
- Liner Type:
- PTFE Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h | 72mm |
| l1 | 44mm |
| l2 | 93mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2 kN |
| Static load Cor | 30.8 kN |
| Max angle α | 15 |
| Weight | 0.26 kg |
