SKU: POS16/F1L.EU

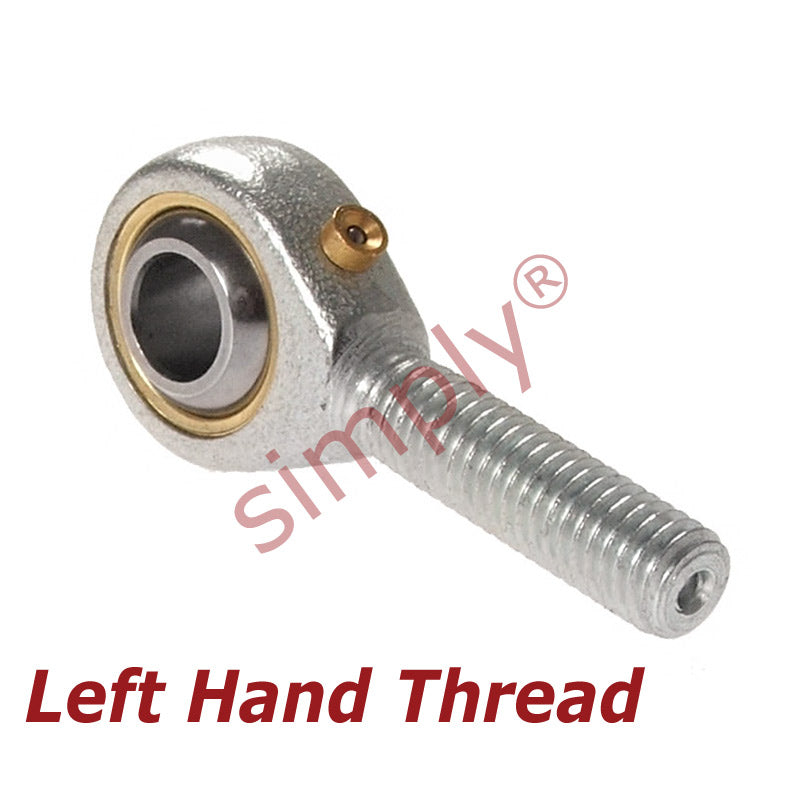

Budget POS16/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x1.5 Thread
Budget POS16/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x1.5 Thread
Regular price
Rs. 988.30
Regular price
Sale price
Rs. 988.30
Taxes included.
In stock
Price Break
10+
Rs. 879.59
19+
Rs. 830.17
29+
Rs. 820.29
39+
Rs. 810.41
49+
Rs. 800.52
74+
Rs. 790.64
99+
Rs. 741.23
199+
Rs. 731.34
249+
Rs. 721.46
499+
Rs. 711.58
999+
Rs. 691.81
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x1.5 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
