SKU: POS16.EU

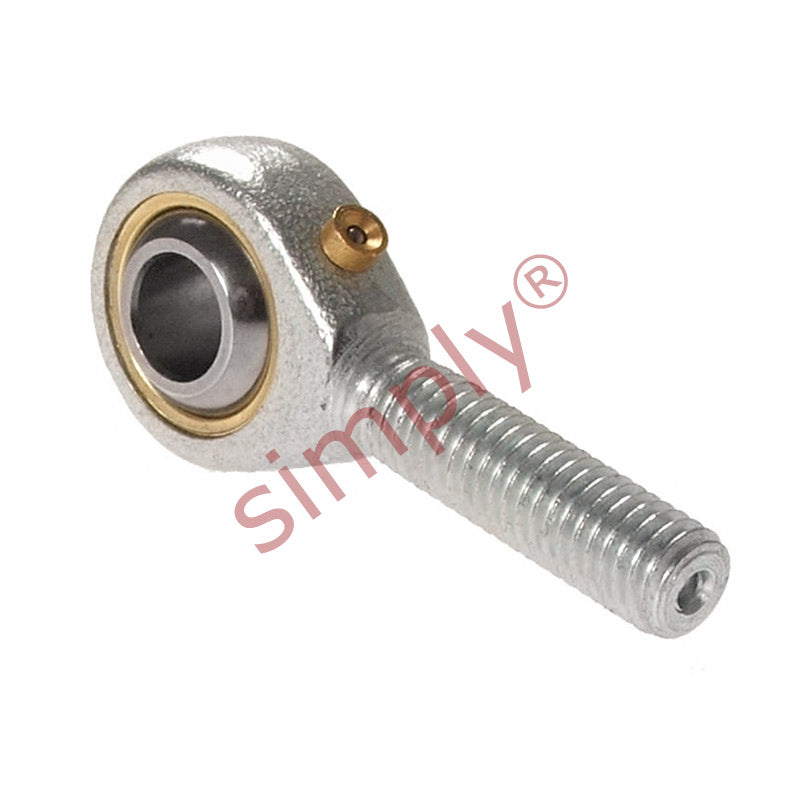

Budget POS16 Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Budget POS16 Right Hand Steel / Bronze Lined Plain Male Rod End 16mm Bore M16x2 Thread
Regular price
Rs. 980.62
Regular price
Sale price
Rs. 980.62
Taxes included.
Equivalent to: GAKFR16PB SAKAC16M SM16 MB-M16
In stock
Price Break
10+
Rs. 872.75
19+
Rs. 823.72
29+
Rs. 813.91
39+
Rs. 804.11
49+
Rs. 794.30
74+
Rs. 784.50
99+
Rs. 735.47
199+
Rs. 725.66
249+
Rs. 715.85
499+
Rs. 706.05
999+
Rs. 686.43
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR16PB SAKAC16M SM16 MB-M16
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x2 |
| h | 66mm |
| l1 | 40mm |
| l2 | 85mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4 kN |
| Static load Cor | 25.9 kN |
| Max angle α | 15 |
| Weight | 0.185 kg |
