SKU: POS14.EU

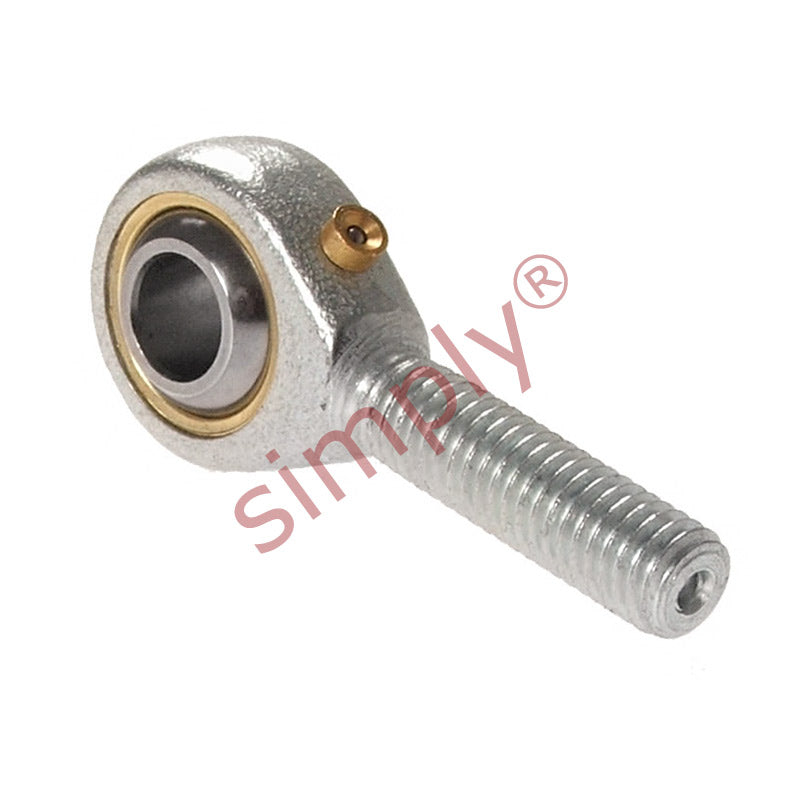

Budget POS14 Right Hand Steel / Bronze Lined Plain Male Rod End 14mm Bore M14x2 Thread
Budget POS14 Right Hand Steel / Bronze Lined Plain Male Rod End 14mm Bore M14x2 Thread
Regular price
Rs. 990.87
Regular price
Sale price
Rs. 990.87
Taxes included.
Equivalent to: GAKFR14PB SAKAC14M SM14 MB-M14
In stock
Price Break
10+
Rs. 881.87
19+
Rs. 832.33
29+
Rs. 822.42
39+
Rs. 812.51
49+
Rs. 802.60
74+
Rs. 792.70
99+
Rs. 743.15
199+
Rs. 733.24
249+
Rs. 723.34
499+
Rs. 713.43
999+
Rs. 693.61
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR14PB SAKAC14M SM14 MB-M14
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M14x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 14mm
- Material:
- Bronze Lined
Technical
Technical
| d | 14mm |
|---|---|
| B | 19mm |
| r1 | 0.6mm |
| C1 | 13.5mm |
| d1 max | 16.8mm |
| d2 | 34mm |
| d3 | M14x2 |
| h | 60mm |
| l1 | 36mm |
| l2 | 77mm |
| Ball diameter | 1 inch |
| Dynamic load Cr | 17.1 kN |
| Static load Cor | 21.3 kN |
| Max angle α | 16 |
| Weight | 0.126 kg |
