SKU: POS12-PTFE

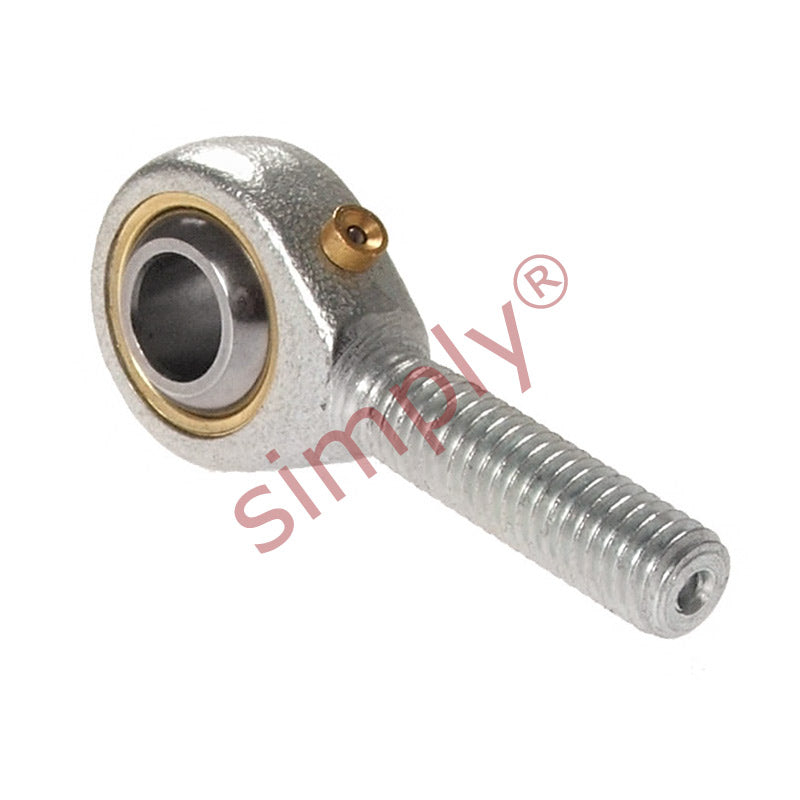

Budget POS12 Right Hand Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Budget POS12 Right Hand Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Regular price
Rs. 1,147.05
Regular price
Sale price
Rs. 1,147.05
Taxes included.
In stock
Price Break
10+
Rs. 1,020.87
19+
Rs. 963.52
29+
Rs. 952.05
39+
Rs. 940.58
49+
Rs. 929.11
74+
Rs. 917.64
99+
Rs. 860.29
199+
Rs. 848.82
249+
Rs. 837.35
499+
Rs. 825.88
999+
Rs. 802.94
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread Direction:
- Right Hand
- Material:
- PTFE Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h | 54mm |
| l1 | 33mm |
| l2 | 69mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.085 kg |
