SKU: POS12.EU

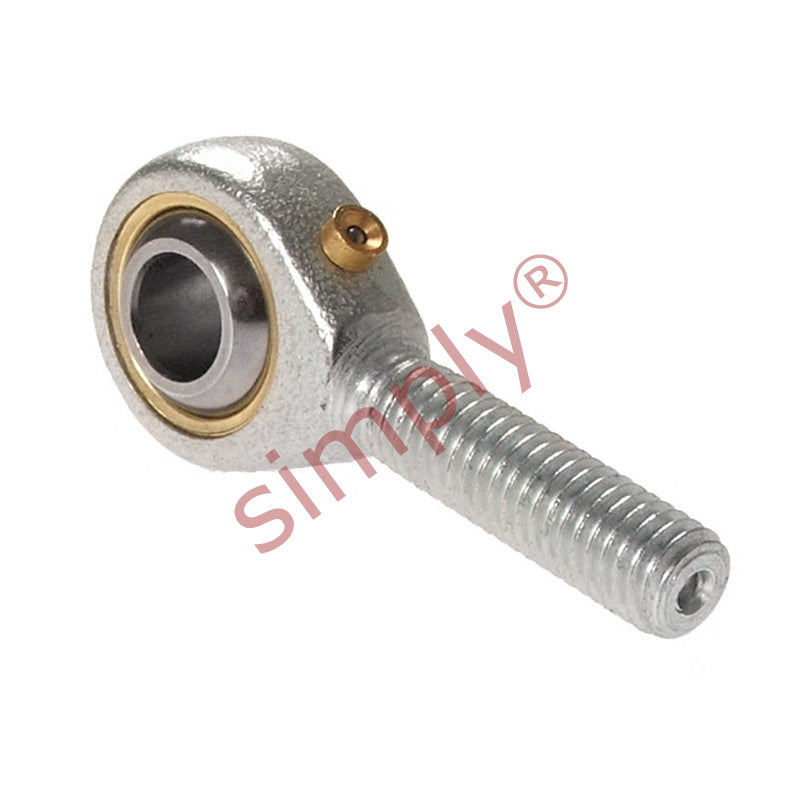

Budget POS12 Right Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Budget POS12 Right Hand Steel / Bronze Lined Plain Male Rod End 12mm Bore M12x1.75 Thread
Regular price
Rs. 810.36
Regular price
Sale price
Rs. 810.36
Taxes included.
Equivalent to: GAKFR12PB SAKAC12M SM12 MB-M12
In stock
Price Break
10+
Rs. 721.22
19+
Rs. 680.70
29+
Rs. 672.60
39+
Rs. 664.50
49+
Rs. 656.39
74+
Rs. 648.29
99+
Rs. 607.77
199+
Rs. 599.67
249+
Rs. 591.56
499+
Rs. 583.46
999+
Rs. 567.25
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GAKFR12PB SAKAC12M SM12 MB-M12
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h | 54mm |
| l1 | 33mm |
| l2 | 69mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.085 kg |
