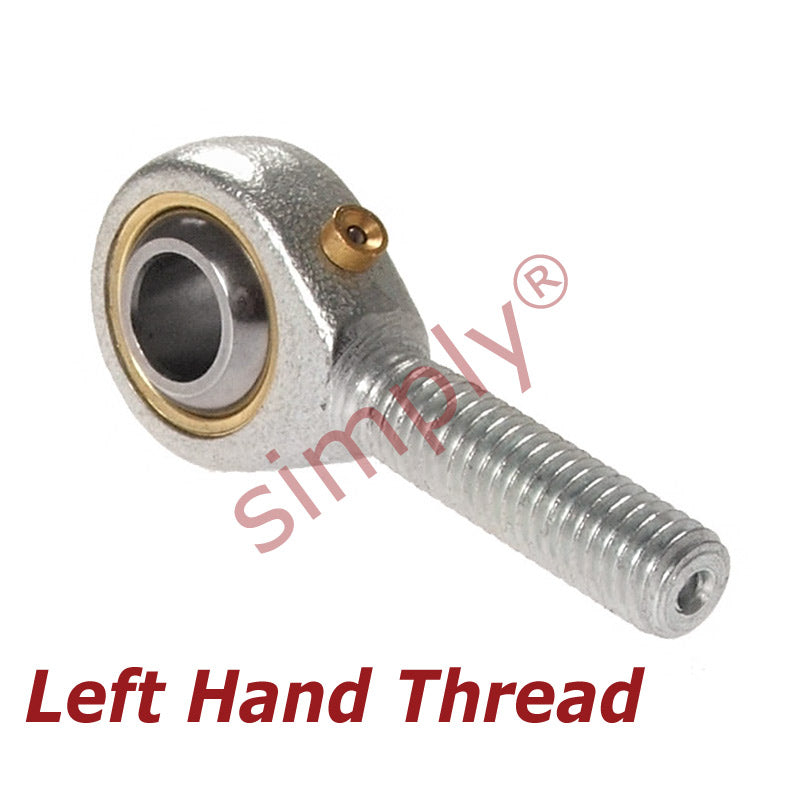

Budget POS10/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.25 Thread
Budget POS10/F1L Left Hand Steel / Bronze Lined Plain Male Rod End 10mm Bore M10x1.25 Thread
Regular price
Rs. 1,755.14
Regular price
Sale price
Rs. 1,755.14
Taxes included.
In stock
Price Break
10+
Rs. 1,562.07
19+
Rs. 1,474.32
29+
Rs. 1,456.77
39+
Rs. 1,439.21
49+
Rs. 1,421.66
74+
Rs. 1,404.11
99+
Rs. 1,316.36
199+
Rs. 1,298.80
249+
Rs. 1,281.25
499+
Rs. 1,263.70
999+
Rs. 1,228.60
Description
Description
|
Male Rod End with Phosphor Bronze Race: LEFT hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M10x1.25
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- Bronze Lined
Technical
Technical
| d | 10mm |
|---|---|
| B | 14mm |
| r1 | 0.6mm |
| C1 | 10.5mm |
| d1 max | 12.9mm |
| d2 | 26mm |
| d3 | M10x1.25 |
| h | 48mm |
| l1 | 29mm |
| l2 | 61mm |
| Ball diameter | 3/4 inch |
| Dynamic load Cr | 10 kN |
| Static load Cor | 13.6 kN |
| Max angle α | 13 |
| Weight | 0.054 kg |
