SKU: PNA35/55-MB

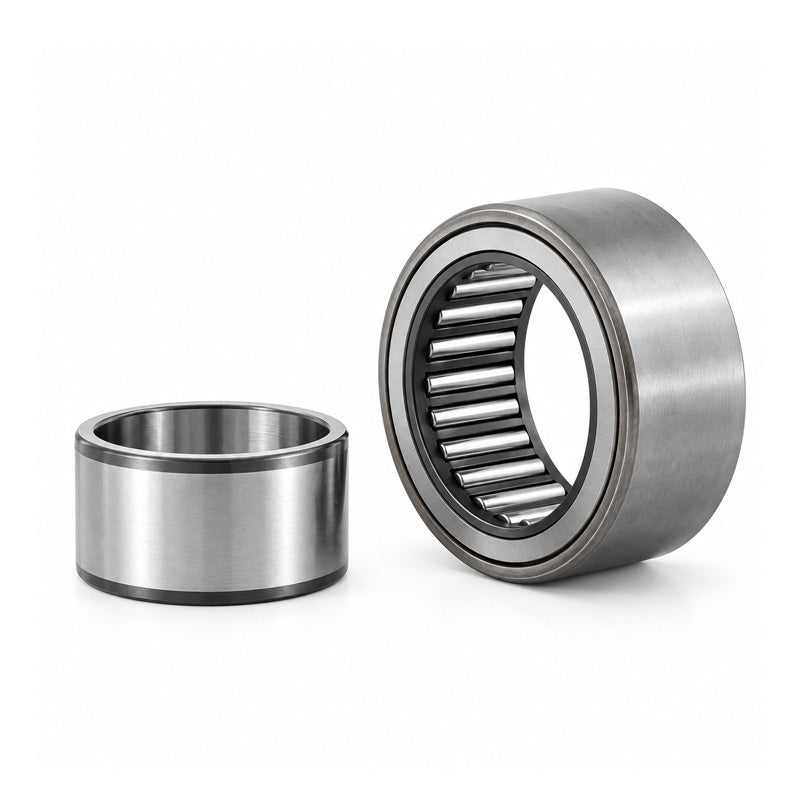

Major Brand PNA35/55 Needle Roller Bearing Alignment Type With Shaft Sleeve 35x55x20
Major Brand PNA35/55 Needle Roller Bearing Alignment Type With Shaft Sleeve 35x55x20
Regular price
Rs. 2,227.57
ex VAT
Regular price
Sale price
Rs. 2,227.57
ex VAT
In stock
Price Break
10+
Rs. 1,982.54
19+
Rs. 1,871.16
29+
Rs. 1,848.88
39+
Rs. 1,826.61
49+
Rs. 1,804.33
74+
Rs. 1,782.06
99+
Rs. 1,670.68
199+
Rs. 1,648.40
249+
Rs. 1,626.13
499+
Rs. 1,603.85
999+
Rs. 1,559.30
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 20mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 20mm |
| Dynamic load | 26400 N |
| Static load | 51000 N |
| Fatigue load limit Pu | 6300 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 40mm |
| D1 | 50.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 37mm |
| Da min | 49.5 |
