SKU: PNA25/47-EU

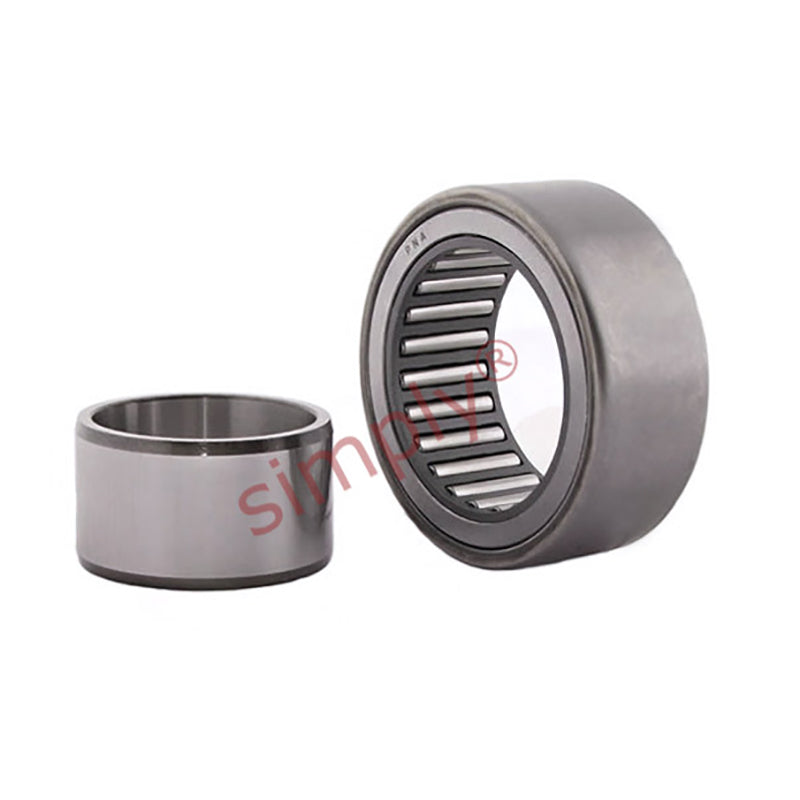

PNA25/47 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 25x47x20
PNA25/47 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 25x47x20
Regular price
Rs. 3,607.57
Regular price
Sale price
Rs. 3,607.57
Taxes included.
In stock
Price Break
10+
Rs. 3,210.74
19+
Rs. 3,030.36
29+
Rs. 2,994.28
39+
Rs. 2,958.21
49+
Rs. 2,922.13
74+
Rs. 2,886.06
99+
Rs. 2,705.68
199+
Rs. 2,669.60
249+
Rs. 2,633.53
499+
Rs. 2,597.45
999+
Rs. 2,525.30
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 20mm |
| Dynamic load C | 22900 N |
| Static load Co | 38000 N |
| Fatigue load limit Pu | 4800 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| D1 | 42mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 25mm |
| Da min | 41mm |
| Da max | 42mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 160 g |
