SKU: PNA17/35-MB

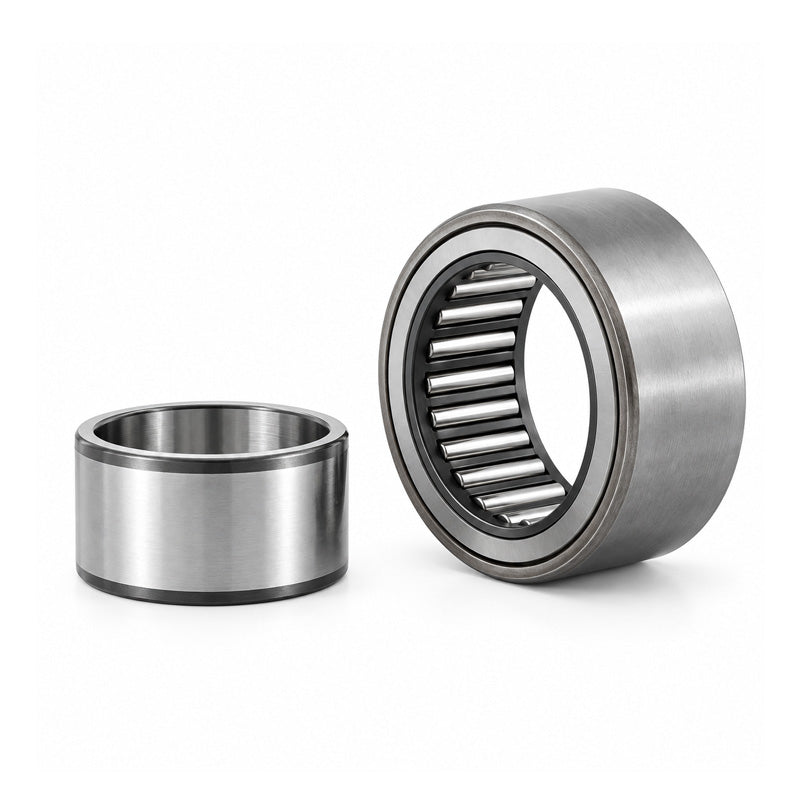

Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Major Brand PNA17/35 Needle Roller Bearing Alignment Type With Shaft Sleeve 17x35x16
Regular price
Rs. 6,480.10
ex VAT
Regular price
Sale price
Rs. 6,480.10
ex VAT
In stock
Price Break
10+
Rs. 5,767.29
19+
Rs. 5,443.28
29+
Rs. 5,378.48
39+
Rs. 5,313.68
49+
Rs. 5,248.88
74+
Rs. 5,184.08
99+
Rs. 4,860.08
199+
Rs. 4,795.27
249+
Rs. 4,730.47
499+
Rs. 4,665.67
999+
Rs. 4,536.07
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load | 13200 N |
| Static load | 19300 N |
| Fatigue load limit Pu | 2280 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| D1 | 30.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 19mm |
| Da min | 29.5 |
