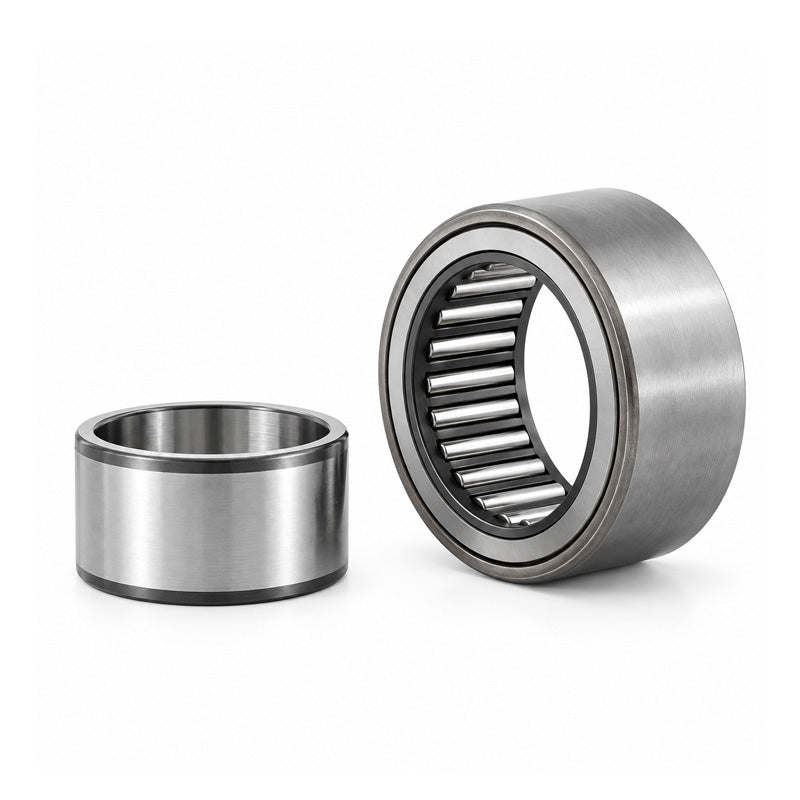

Major Brand PNA12/28 Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Major Brand PNA12/28 Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Regular price
Rs. 5,385.94
ex VAT
Regular price
Sale price
Rs. 5,385.94
ex VAT
In stock
Price Break
10+
Rs. 4,793.49
19+
Rs. 4,524.19
29+
Rs. 4,470.33
39+
Rs. 4,416.47
49+
Rs. 4,362.61
74+
Rs. 4,308.75
99+
Rs. 4,039.46
199+
Rs. 3,985.60
249+
Rs. 3,931.74
499+
Rs. 3,877.88
999+
Rs. 3,770.16
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load | 7370 N |
| Static load | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 15mm |
| D1 | 24.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 14mm |
| Da min | 23.5 |
