SKU: PNA12/28-EU

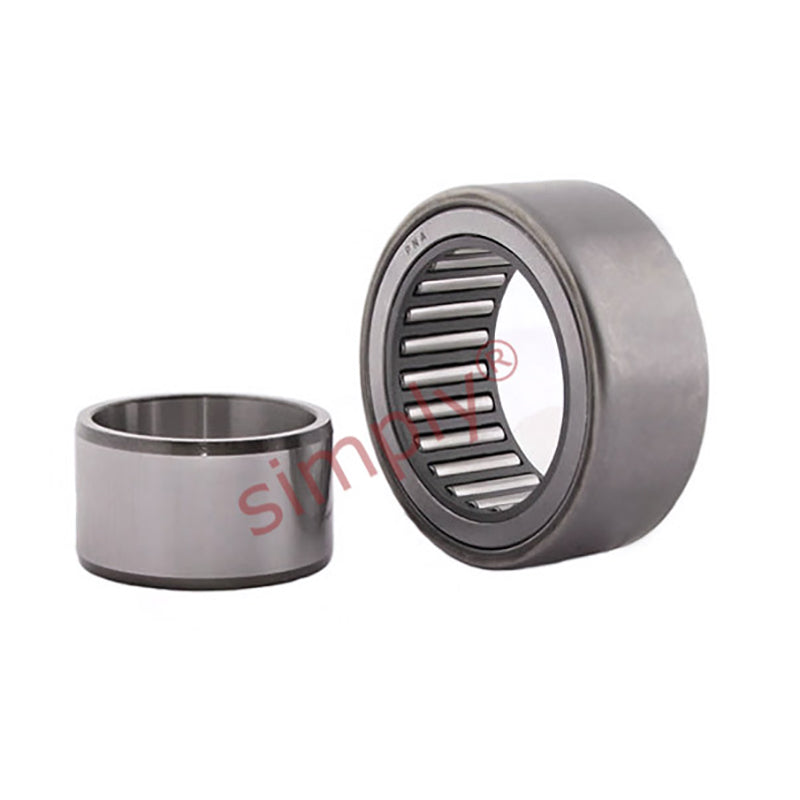

PNA12/28 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
PNA12/28 Budget Needle Roller Bearing Alignment Type With Shaft Sleeve 12x28x12
Regular price
Rs. 2,333.78
Regular price
Sale price
Rs. 2,333.78
Taxes included.
In stock
Price Break
10+
Rs. 2,077.06
19+
Rs. 1,960.38
29+
Rs. 1,937.04
39+
Rs. 1,913.70
49+
Rs. 1,890.36
74+
Rs. 1,867.02
99+
Rs. 1,750.34
199+
Rs. 1,727.00
249+
Rs. 1,703.66
499+
Rs. 1,680.32
999+
Rs. 1,633.65
Description
Description
|
Budget Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 12mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 12mm |
| Dynamic load C | 7370 N |
| Static load Co | 9150 N |
| Fatigue load limit Pu | 1080 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| F | 15mm |
| D1 | 24.5mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| s (axial disp) | 0.5mm |
| da min | 14mm |
| Da min | 23.5mm |
| Da max | 24.5mm |
| ra max | 1mm |
| rb max | 0.3mm |
| Weight | 37 g |
