SKU: PHUSE40-XL-INA

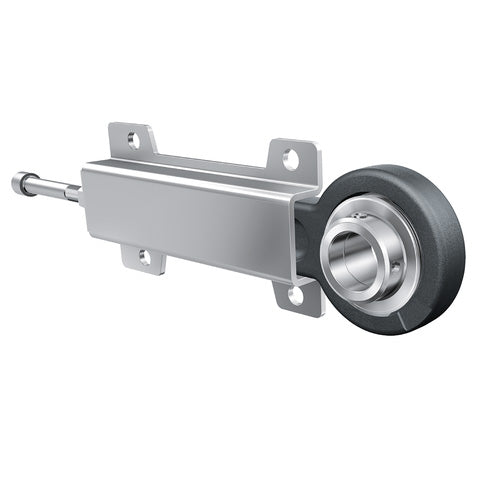

INA PHUSE40XL Sheet Steel Take Up Unit with Eccentric Collar Insert 40mm Bore
INA PHUSE40XL Sheet Steel Take Up Unit with Eccentric Collar Insert 40mm Bore
Regular price
Rs. 13,756.90
Regular price
Sale price
Rs. 13,756.90
Taxes included.
In stock
Price Break
10+
Rs. 12,243.64
19+
Rs. 11,555.80
29+
Rs. 11,418.23
39+
Rs. 11,280.66
49+
Rs. 11,143.09
74+
Rs. 11,005.52
99+
Rs. 10,317.68
199+
Rs. 10,180.11
249+
Rs. 10,042.54
499+
Rs. 9,904.97
999+
Rs. 9,629.83
Description
Description
|
INA Take-Up Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. These cast iron and sheet steel take-up units are used where shafts must undergo substantial displacement. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Style:
- PHUSE
- Bolt Hole Centres:
- 180mm
Technical
Technical
| d | 40mm |
|---|---|
| H | 130mm |
| A | 36mm |
| A2 | 30mm |
| B1 | 43.8mm |
| d3 max | 58mm |
| F | 20mm |
| G | 80mm |
| H1 | 60mm (Tolerance: +/-0.15) |
| J | 180mm |
| J1 | 100mm |
| K1 | M16 |
| L1 | 256mm |
| L1 | 60mm |
| N | 14mm |
| Q | M6 |
| S | 4mm |
| S1 | 32.8mm |
| V | 108mm |
| Mass | 4.89 kg |
| Load carrying capacity of housing Cor G | 19800 N |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | HUE08 / HUSE10 |
| Designation of bearing | GRAE40-XL-NPP-B |
