SKU: PHS8.EU

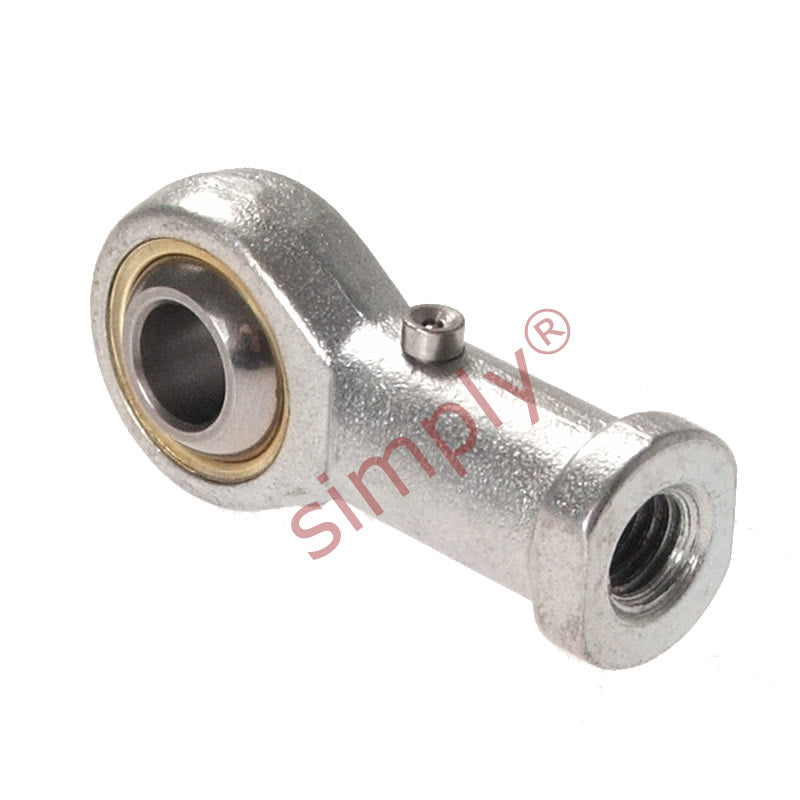

Budget PHS8 Right Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
Budget PHS8 Right Hand Steel / Bronze Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
Regular price
Rs. 609.37
Regular price
Sale price
Rs. 609.37
Taxes included.
Equivalent to: GIKFR8PB SIKAC8M SF8 FB-M08
In stock
Price Break
10+
Rs. 542.34
19+
Rs. 511.87
29+
Rs. 505.78
39+
Rs. 499.68
49+
Rs. 493.59
74+
Rs. 487.50
99+
Rs. 457.03
199+
Rs. 450.93
249+
Rs. 444.84
499+
Rs. 438.75
999+
Rs. 426.56
Description
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GIKFR8PB SIKAC8M SF8 FB-M08
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- Bronze Lined
Technical
Technical
| d | 8mm |
|---|---|
| B | 12mm |
| r1 | 0.3mm |
| C1 | 9mm |
| d1 max | 10.3mm |
| d2 | 22mm |
| d3 | M8x1.25 |
| h1 | 36mm |
| L3 | 17mm |
| L4 | 47mm |
| L5 | 5mm |
| d4 | [12.5mm |
| d5 | 16mm |
| S | 14mm |
| Ball diameter | 5/8 inch |
| Dynamic load Cr | 7.1 kN |
| Static load Cor | 10.4 kN |
| Max angle α | 14 |
| Weight | 0.043 kg |
