SKU: PHS25L.EU

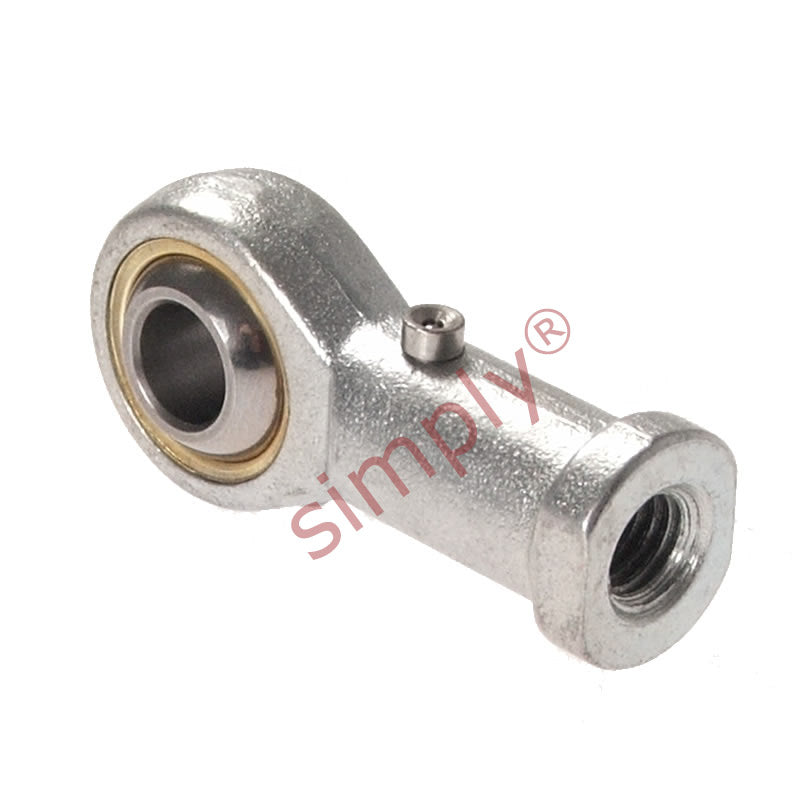

Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
Budget PHS25L Left Hand Steel / Bronze Lined Plain Female Rod End 25mm Bore M24x2 Thread
Regular price
Rs. 5,765.97
Regular price
Sale price
Rs. 5,765.97
Taxes included.
Equivalent to: SILKAC25M FBL-M25
In stock
Price Break
10+
Rs. 5,131.71
19+
Rs. 4,843.41
29+
Rs. 4,785.76
39+
Rs. 4,728.10
49+
Rs. 4,670.44
74+
Rs. 4,612.78
99+
Rs. 4,324.48
199+
Rs. 4,266.82
249+
Rs. 4,209.16
499+
Rs. 4,151.50
999+
Rs. 4,036.18
Description
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SILKAC25M FBL-M25
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25mm
- Material:
- Bronze Lined
Technical
Technical
| d | 25mm |
|---|---|
| B | 31mm |
| r1 | 0.6mm |
| C1 | 22mm |
| d1 max | 29.5mm |
| d2 | 60mm |
| d3 | M24x2 |
| h1 | 94mm |
| L3 | 48mm |
| L4 | 124mm |
| L5 | 12mm |
| d4 | 33.5mm |
| d5 | 42mm |
| S | 36mm |
| Ball diameter | 1-11/16 inch |
| Dynamic load Cr | 47.1 kN |
| Static load Cor | 74.1 kN |
| Max angle α | 15 |
| Weight | 0.75 kg |
