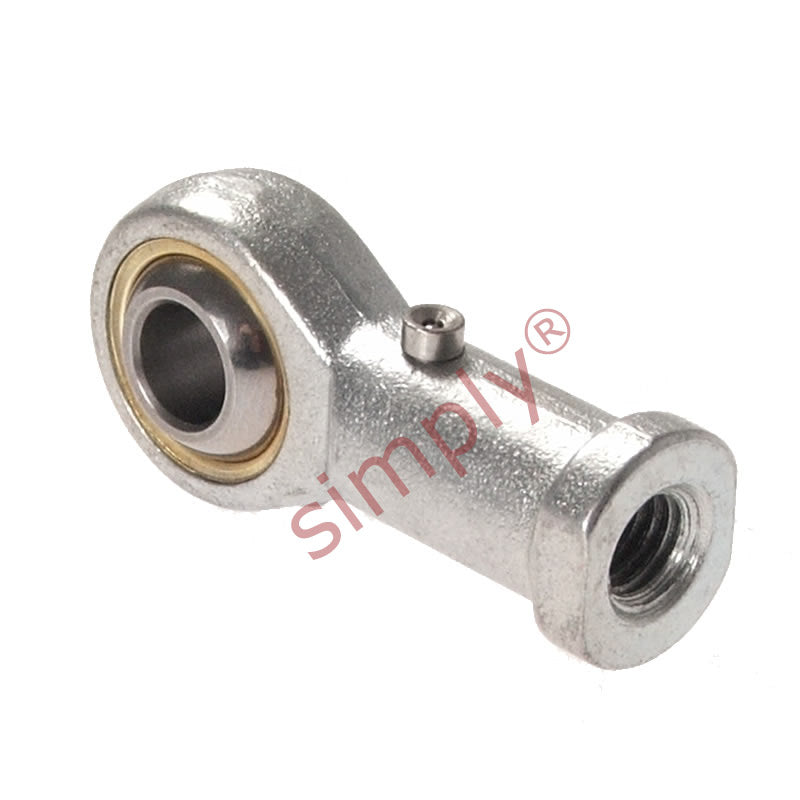

Budget PHS20L Left Hand Steel / Bronze Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
Budget PHS20L Left Hand Steel / Bronze Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
Regular price
Rs. 1,483.74
Regular price
Sale price
Rs. 1,483.74
Taxes included.
Equivalent to: SILKAC20M FBL-M20
In stock
Price Break
10+
Rs. 1,320.53
19+
Rs. 1,246.34
29+
Rs. 1,231.50
39+
Rs. 1,216.67
49+
Rs. 1,201.83
74+
Rs. 1,186.99
99+
Rs. 1,112.81
199+
Rs. 1,097.97
249+
Rs. 1,083.13
499+
Rs. 1,068.29
999+
Rs. 1,038.62
Description
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SILKAC20M FBL-M20
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 20mm
- Material:
- Bronze Lined
Technical
Technical
| d | 20mm |
|---|---|
| B | 25mm |
| r1 | 0.6mm |
| C1 | 18mm |
| d1 max | 24.3mm |
| d2 | 46mm |
| d3 | M20x1.5 |
| h1 | 77mm |
| L3 | 40mm |
| L4 | 100mm |
| L5 | 10mm |
| d4 | 27.5mm |
| d5 | 34mm |
| S | 30mm |
| Ball diameter | 1-3/8 inch |
| Dynamic load Cr | 31.4 kN |
| Static load Cor | 36.2 kN |
| Max angle α | 14 |
| Weight | 0.38 kg |
