SKU: PHS18.EU

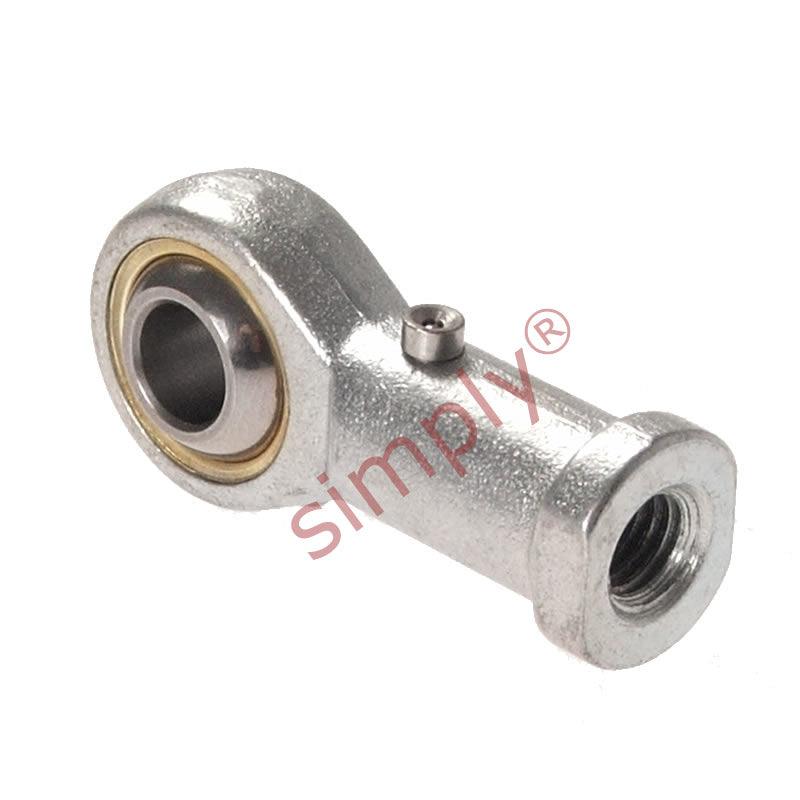

Budget PHS18 Right Hand Steel / Bronze Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Budget PHS18 Right Hand Steel / Bronze Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
Regular price
Rs. 1,110.62
ex VAT
Regular price
Sale price
Rs. 1,110.62
ex VAT
Equivalent to: GIKFR18PB SIKAC18M SF18 FB-M18
In stock
Price Break
10+
Rs. 988.45
19+
Rs. 932.92
29+
Rs. 921.81
39+
Rs. 910.71
49+
Rs. 899.60
74+
Rs. 888.50
99+
Rs. 832.97
199+
Rs. 821.86
249+
Rs. 810.75
499+
Rs. 799.65
999+
Rs. 777.43
Couldn't load pickup availability
Description
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: GIKFR18PB SIKAC18M SF18 FB-M18
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 18mm
- Liner Type:
- Bronze Lined
Technical
Technical
| d | 18mm |
|---|---|
| B | 23mm |
| r1 | 0.6mm |
| C1 | 16.5mm |
| d1 max | 21.8mm |
| d2 | 42mm |
| d3 | M18x1.5 |
| h1 | 71mm |
| L3 | 36mm |
| L4 | 92mm |
| L5 | 10mm |
| d4 | 25mm |
| d5 | 31mm |
| S | 27mm |
| Ball diameter | 1-1/4 inch |
| Dynamic load Cr | 26.2 kN |
| Static load Cor | 30.8 kN |
| Max angle α | 15 |
| Weight | 0.295 kg |
