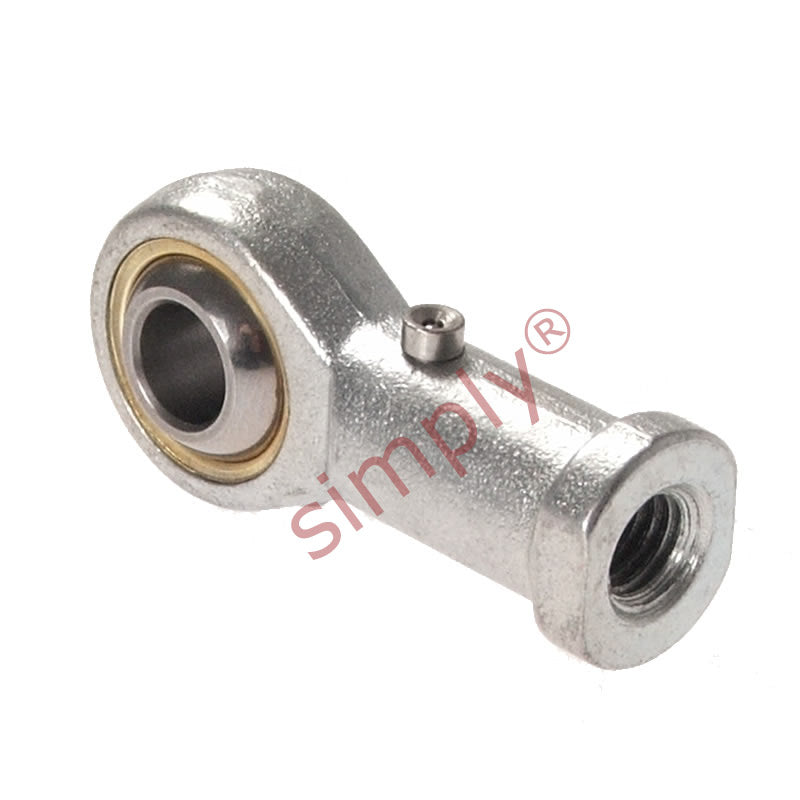

Budget PHS12L Left Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Budget PHS12L Left Hand Steel / Bronze Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Regular price
Rs. 851.32
Regular price
Sale price
Rs. 851.32
Taxes included.
Equivalent to: SILKAC12M FBL-M12
In stock
Price Break
10+
Rs. 757.67
19+
Rs. 715.11
29+
Rs. 706.60
39+
Rs. 698.08
49+
Rs. 689.57
74+
Rs. 681.06
99+
Rs. 638.49
199+
Rs. 629.98
249+
Rs. 621.46
499+
Rs. 612.95
999+
Rs. 595.92
Description
Description
|
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
Equivalent: SILKAC12M FBL-M12
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h1 | 50mm |
| L3 | 24mm |
| L4 | 65mm |
| L5 | 6.5mm |
| d4 | 17.5mm |
| d5 | 22mm |
| S | 19mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.3 kN |
| Static load Cor | 17.3 kN |
| Max angle α | 13 |
| Weight | 0.107 kg |
