SKU: PHS12EC.EU

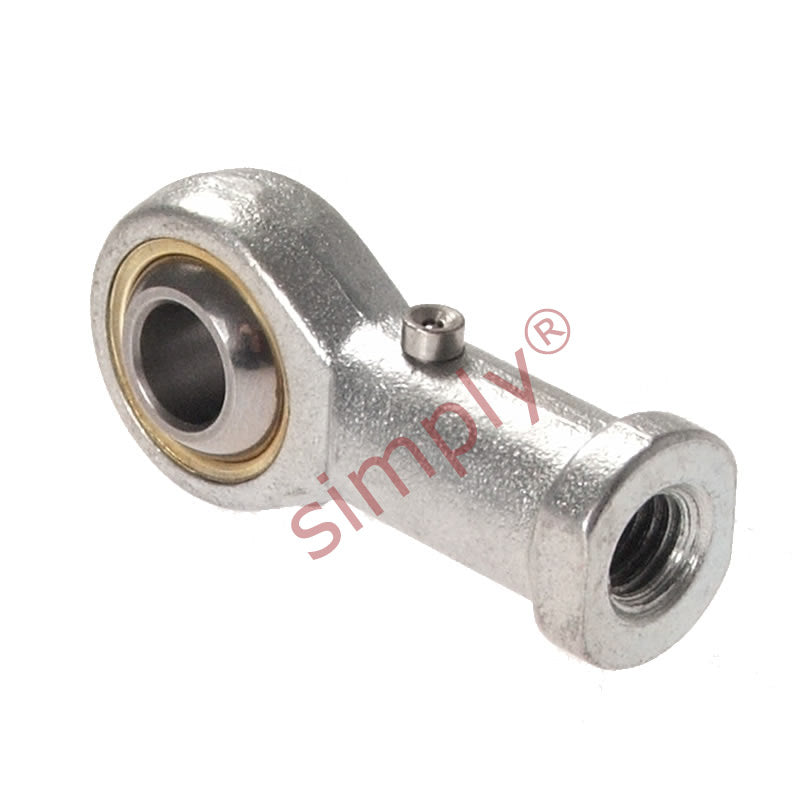

Budget PHS12 Right Hand Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Budget PHS12 Right Hand Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
Regular price
Rs. 1,099.68
Regular price
Sale price
Rs. 1,099.68
Taxes included.
In stock
Price Break
10+
Rs. 978.72
19+
Rs. 923.73
29+
Rs. 912.73
39+
Rs. 901.74
49+
Rs. 890.74
74+
Rs. 879.74
99+
Rs. 824.76
199+
Rs. 813.76
249+
Rs. 802.77
499+
Rs. 791.77
999+
Rs. 769.78
Description
Description
|
Female Rod End with Phosphor Bronze Race: Right hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm
- Material:
- Bronze Lined
Technical
Technical
| d | 12mm |
|---|---|
| B | 16mm |
| r1 | 0.6mm |
| C1 | 12mm |
| d1 max | 15.4mm |
| d2 | 30mm |
| d3 | M12x1.75 |
| h1 | 50mm |
| L3 | 23mm |
| L4 | 65mm |
| L5 | 6.5mm |
| d4 | 17.5mm |
| d5 | 22mm |
| S | 19mm |
| Ball diameter | 7/8 inch |
| Dynamic load Cr | 13.5 kN |
| Static load Cor | 22.7 kN |
| Max angle α | 13 |
| Weight | 0.107 kg |
