SKU: PHR-1-3/4

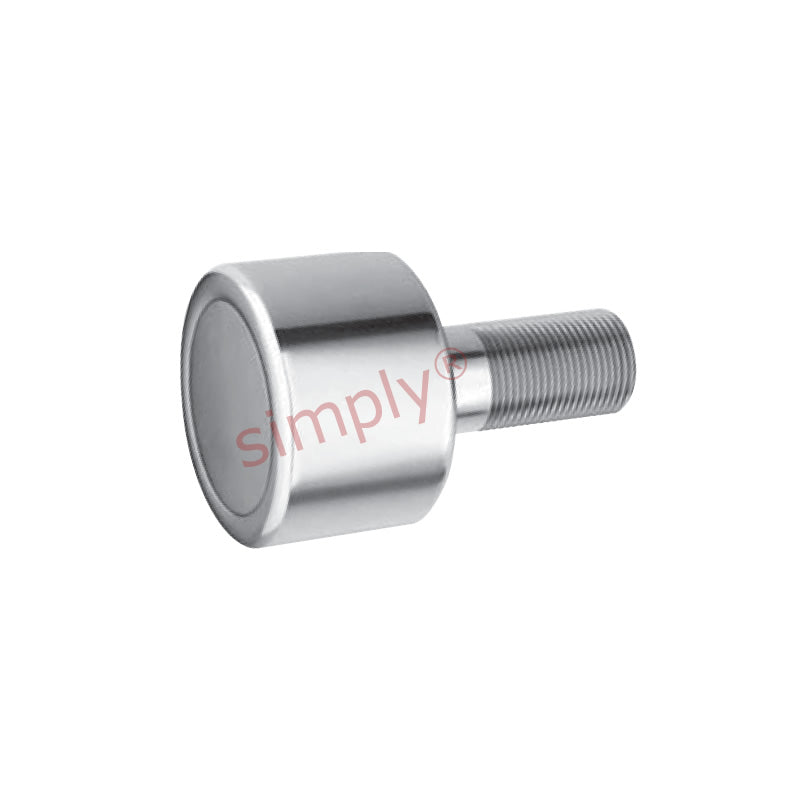

Major Brand PHR1-3/4 Hex Head Plain Hi-Roller Bearing 1-3/4 inch Outside Diameter
Major Brand PHR1-3/4 Hex Head Plain Hi-Roller Bearing 1-3/4 inch Outside Diameter
Regular price
Rs. 10,625.56
Regular price
Sale price
Rs. 10,625.56
Taxes included.
Equivalent to: PHR-175-A PLR-1-3/4 PCF-1-3/4
In stock
Price Break
10+
Rs. 9,456.75
19+
Rs. 8,925.47
29+
Rs. 8,819.21
39+
Rs. 8,712.96
49+
Rs. 8,606.70
74+
Rs. 8,500.45
99+
Rs. 7,969.17
199+
Rs. 7,862.91
249+
Rs. 7,756.66
499+
Rs. 7,650.40
999+
Rs. 7,437.89
Description
Description
|
Plain Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: PHR-175-A PLR-1-3/4 PCF-1-3/4
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 30.16mm = 1.187 (1-3/16) inch
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 1.187 inch |
| C | 0.75 inch |
| D | 1.75 inch |
| E | 0.875 inch |
| Thread class 2A F | 3/4-16 UNF |
| G | 1 inch |
| S | 0.062 inch |
| Basic dynamic rating | 2760 lbs |
| Dynamic thrust load rating | 680 lbs |
| Max static capacity | 1100 lbs |
