SKU: PDF155/12A-RHP

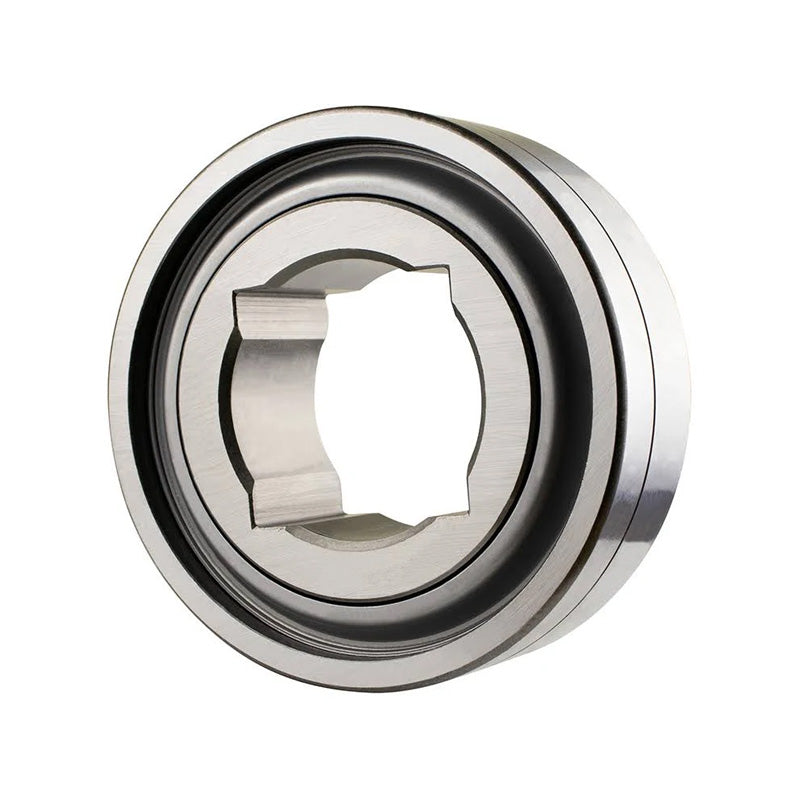

RHP PDF155/12A Parallel Outer Square 40mm Bore Bearing 100mm Outside Diameter
RHP PDF155/12A Parallel Outer Square 40mm Bore Bearing 100mm Outside Diameter
Regular price
Rs. 18,893.22
ex VAT
Regular price
Sale price
Rs. 18,893.22
ex VAT
In stock
Price Break
10+
Rs. 16,814.97
19+
Rs. 15,870.30
29+
Rs. 15,681.37
39+
Rs. 15,492.44
49+
Rs. 15,303.51
74+
Rs. 15,114.58
99+
Rs. 14,169.92
199+
Rs. 13,980.98
249+
Rs. 13,792.05
499+
Rs. 13,603.12
999+
Rs. 13,225.25
Couldn't load pickup availability
Description
Description
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
- A great working depth places the bearings directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage
- Shock load protection due to high grade ductile iron housing
- Exclusive patented sealing system eliminates the need for daily relubrication
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 100mm
- Style:
Technical
Technical
| Bore | 40mm |
|---|---|
| d Nominal | 40.77mm |
| Tolerance Nominal to Minus | 0.2 |
| D Nominal | 100mm |
| Tolerance Nominal to Minus | 0.013 |
| B | 33.34mm |
| C | 33.34mm |
| C2 | -mm |
| r | 1.5mm |
| Dynamic load Cr | 33400 N |
| Static load Cor | 29200 N |
| Rec max speed | 500 rpm |
| Weight | 1.19 kg |
