SKU: PCZH19-JCS

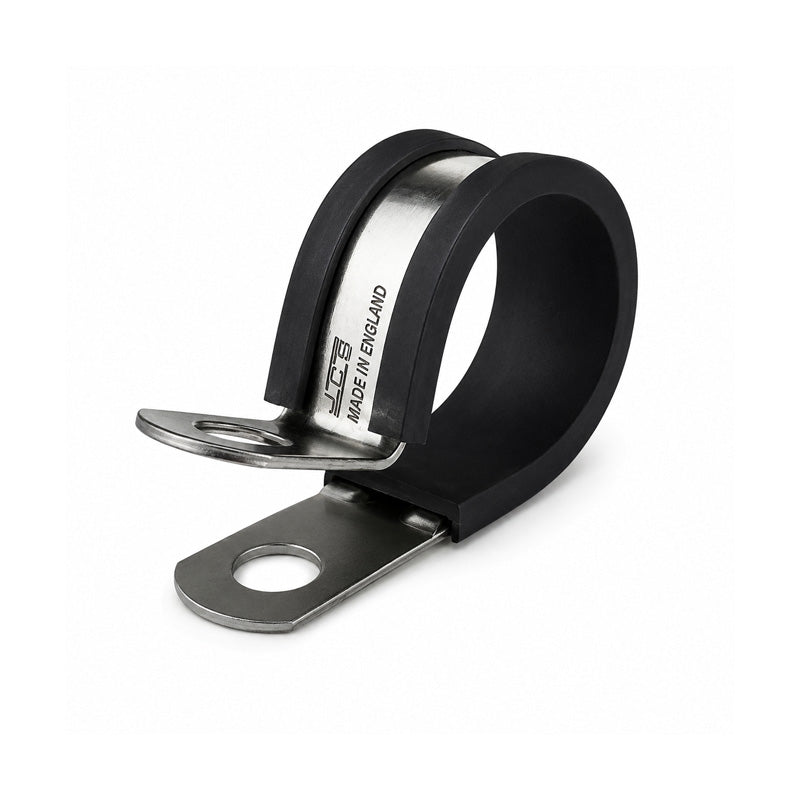

JCS PCZH19 Hi-Temp Zinc Plated Steel P-Clip with TPE Liner Band 19mm Closed Diameter
JCS PCZH19 Hi-Temp Zinc Plated Steel P-Clip with TPE Liner Band 19mm Closed Diameter
Regular price
Rs. 152.34
Regular price
Sale price
Rs. 152.34
Taxes included.
In stock
Price Break
5+
Rs. 106.64
10+
Rs. 91.40
20+
Rs. 83.79
50+
Rs. 76.17
100+
Rs. 60.94
500+
Rs. 53.32
1000+
Rs. 45.70
Description
Description
High-Temperature Zinc Plated Steel P-Clips with TPE160 Liner: JCS rubber-lined P-Clips are tough and durable, providing a simple and secure fixing solution for even the most challenging of environments. Supplied with a TPE rubber liner which prevents chafing or damage to the surface of the item being clamped. The P-Clip band features a special strengthening rib that keeps the clips flush with the surface to which it is bolted. Zinc Plated version is heavily electro-zinc plated on all surfaces including the edges for the very best corrosion resistance. UV and ozone resistant TPE rubber liner absorbs vibration and prevents chafing of pipe or cable.
- Brand / Quality:
- JCS - High Quality
- Outside Diameter:
- 19mm
- Width:
- 16mm
Technical
Technical
| BS.No | 19 |
|---|---|
| Fastening | M6 |
| Dia Closed | 19mm |
| A | 13mm |
| B | 23mm |
| C | 0.9mm |
| D | 6.6mm |
| E | 12.6mm |
| F | 16mm |
| G | 7mm |
| Liner | TPE 160 (grey) |
| Service Temperature | -50 deg C to +160 deg C |
