SKU: PCCJ35-INA

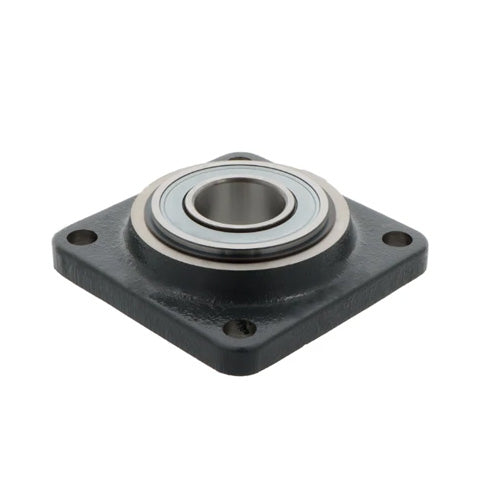

INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore
INA PCCJ35 Four Bolt Cast Iron Square Housing with Double Row Angular Contact Ball Bearing 35mm Bore
Regular price
Rs. 16,856.23
Regular price
Sale price
Rs. 16,856.23
Taxes included.
In stock
Price Break
10+
Rs. 15,002.04
19+
Rs. 14,159.23
29+
Rs. 13,990.67
39+
Rs. 13,822.11
49+
Rs. 13,653.55
74+
Rs. 13,484.98
99+
Rs. 12,642.17
199+
Rs. 12,473.61
249+
Rs. 12,305.05
499+
Rs. 12,136.49
999+
Rs. 11,799.36
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed double row angular contact ball bearing fitted in the housing. This square cast iron housing has through holes for location purposes. Benefits: Re-lubricatable, sealed on both sides, maintenance-free. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- PCCJ
- Bolt Hole Centres:
- 92mm

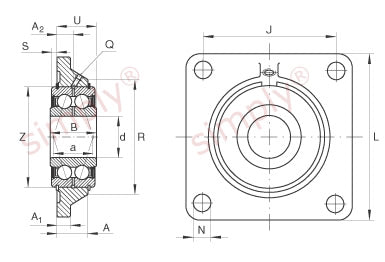

Technical
Technical
| d | 35mm |
|---|---|
| L | 118mm |
| B | 36mm |
| A | 26mm |
| A1 | 14mm |
| A2 | 14mm |
| a | 33.8mm |
| J | 92mm |
| N | 14mm |
| Q | M6 |
| R max | 88mm |
| S | 3mm |
| U | 31.7mm |
| Z | 72mm (Tolerance: h8) |
| Mass | 1.48 kg |
| Basic dynamic load rating Cr | 39500 N |
| Basic static load rating Cor | 29000 N |
| Fatigue limit load Cur | 1470 N |
| Designation of housing | CCJ07 |
| Designation of bearing | G5207-2RS-N |
