SKU: PBS-DS-08B-12
12 Tooth 08B Pilot Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
12 Tooth 08B Pilot Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
Regular price
Rs. 803.96
Regular price
Sale price
Rs. 803.96
Taxes included.
Equivalent to: 661-009 DS08B1-12
In stock
Price Break
10+
Rs. 715.52
19+
Rs. 675.33
29+
Rs. 667.29
39+
Rs. 659.25
49+
Rs. 651.21
74+
Rs. 643.17
99+
Rs. 602.97
199+
Rs. 594.93
249+
Rs. 586.89
499+
Rs. 578.85
999+
Rs. 562.77
Description
Description
Pilot Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel or GG22 close grain cast iron. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-009 DS08B1-12
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 661-009 DS08B1-12
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 12
- Pitch:
- 12.7mm = 0.5 (1/2) inch
- Item Type:
- BS European Standard

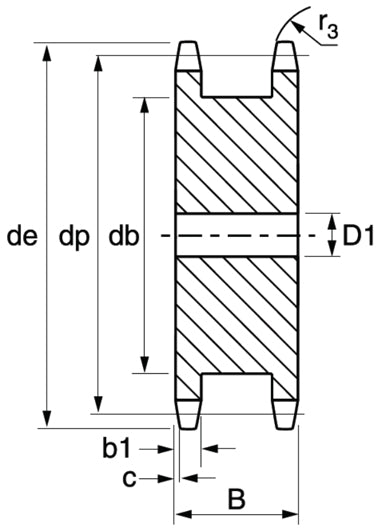

Technical
Technical
| No. of Teeth | 12 |
|---|---|
| Pitch Diameter dp | 49.07mm |
| Outer Diameter de | 53mm |
| Hub Diameter N | 35mm |
| Width B | 31mm |
| Chamfer C | 1.3mm |
| Tooth Radius r3 | 13mm |
| Tooth Width b1 | 7.2mm |
| Stock Bore D1 | 12mm |
| Weight | 0.203 kg |
