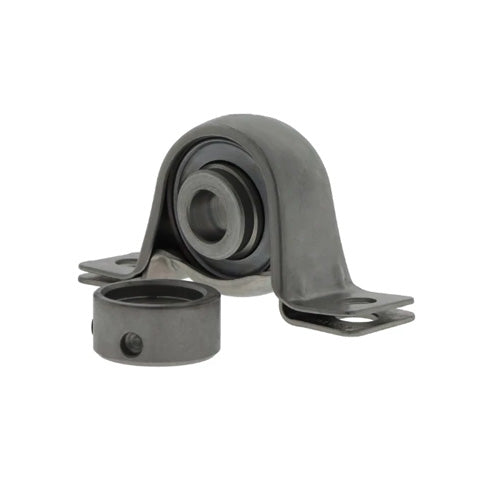

INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore
INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore
Regular price
Rs. 3,011.00
Regular price
Sale price
Rs. 3,011.00
Taxes included.
In stock
Price Break
10+
Rs. 2,679.79
19+
Rs. 2,529.24
29+
Rs. 2,499.13
39+
Rs. 2,469.02
49+
Rs. 2,438.91
74+
Rs. 2,408.80
99+
Rs. 2,258.25
199+
Rs. 2,228.14
249+
Rs. 2,198.03
499+
Rs. 2,167.92
999+
Rs. 2,107.70
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Style:
- PB
- Bolt Hole Centres:
- 68mm
Technical
Technical
| d | 17mm |
|---|---|
| L | 85.7mm |
| H2 | 43.2mm |
| A | 25.4mm |
| A1 | 18.4mm |
| B1 | 28.6mmd3 max |
| 28.4mm | H |
| 22.2mm | H1 |
| 2.6mm | J |
| 68mm | N |
| 9.5mm | S1 |
| 22.1mm | Mass |
| 0.17 kg | Load carrying capacity of housing Cor G |
| 1350 N | Basic dynamic load rating Cr |
| 10100 N | Basic static load rating Cor |
| 4750 N | Designation of housing |
| GEH40-BT? | Designation of bearing |
| RAE17-XL-NPP-B? | N/A |
