SKU: P30TF-SKF

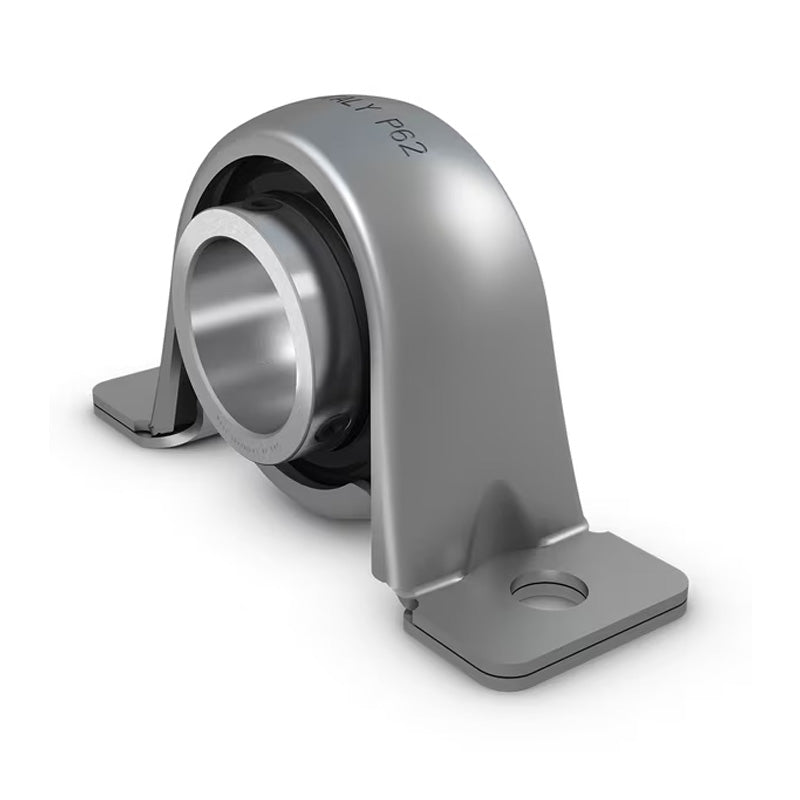

SKF P30TF Pressed Steel Plummer Block with Grub Screw Insert 30mm Bore - Allow 2-3 Days
SKF P30TF Pressed Steel Plummer Block with Grub Screw Insert 30mm Bore - Allow 2-3 Days
Regular price
Rs. 70,914.72
Regular price
Sale price
Rs. 70,914.72
Taxes included.
In stock
Price Break
5+
Rs. 70,205.57
10+
Rs. 67,368.98
20+
Rs. 65,950.69
50+
Rs. 63,823.25
100+
Rs. 62,404.95
500+
Rs. 58,859.22
1000+
Rs. 49,640.30
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- P
- Bolt Hole Centres:
- 95mm

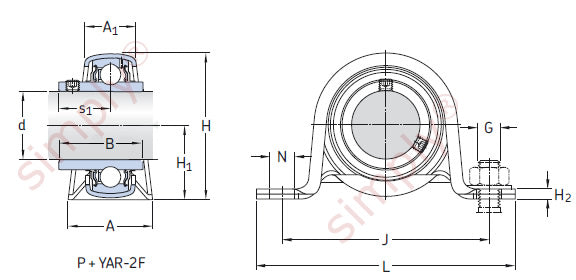

Technical
Technical
| d | 30mm |
|---|---|
| A | 38mm |
| A1 | 25mm |
| B | 38.1mm |
| H | 66mm |
| H1 | 32.9mm |
| H2 | 4mm |
| J | 95mm |
| L | 119mm |
| N | 11.2mm |
| G | 10mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Permissible housing load radial | 2.6 kN |
| Weight | 0.47 kg |
| Housing | YAR206-2F |
| Insert | P62 |
