SKU: P25TF-SKF

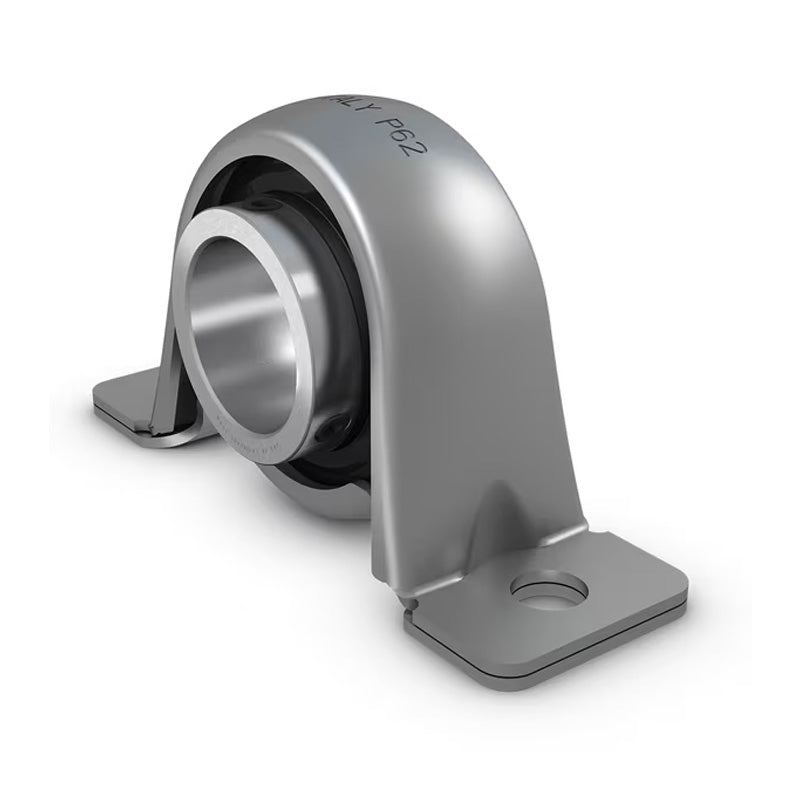

SKF P25TF Pressed Steel Plummer Block with Grub Screw Insert 25mm Bore - Allow 2-3 Days
SKF P25TF Pressed Steel Plummer Block with Grub Screw Insert 25mm Bore - Allow 2-3 Days
Regular price
Rs. 49,643.12
Regular price
Sale price
Rs. 49,643.12
Taxes included.
In stock
Price Break
5+
Rs. 49,146.69
10+
Rs. 47,160.96
20+
Rs. 46,168.10
50+
Rs. 44,678.81
100+
Rs. 43,685.95
500+
Rs. 41,203.79
1000+
Rs. 34,750.18
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- P
- Bolt Hole Centres:
- 86mm
Technical
Technical
| d | 25mm |
|---|---|
| A | 32mm |
| A1 | 24mm |
| B | 34.1mm |
| H | 56mm |
| H1 | 28.3mm |
| H2 | 3.2mm |
| J | 86mm |
| L | 108mm |
| N | 11.2mm |
| G | 10mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Permissible housing load radial | 1.8 kN |
| Weight | 0.27 kg |
| Housing | YAR205-2F |
| Insert | P52 |
