SKU: NX12Z-MB

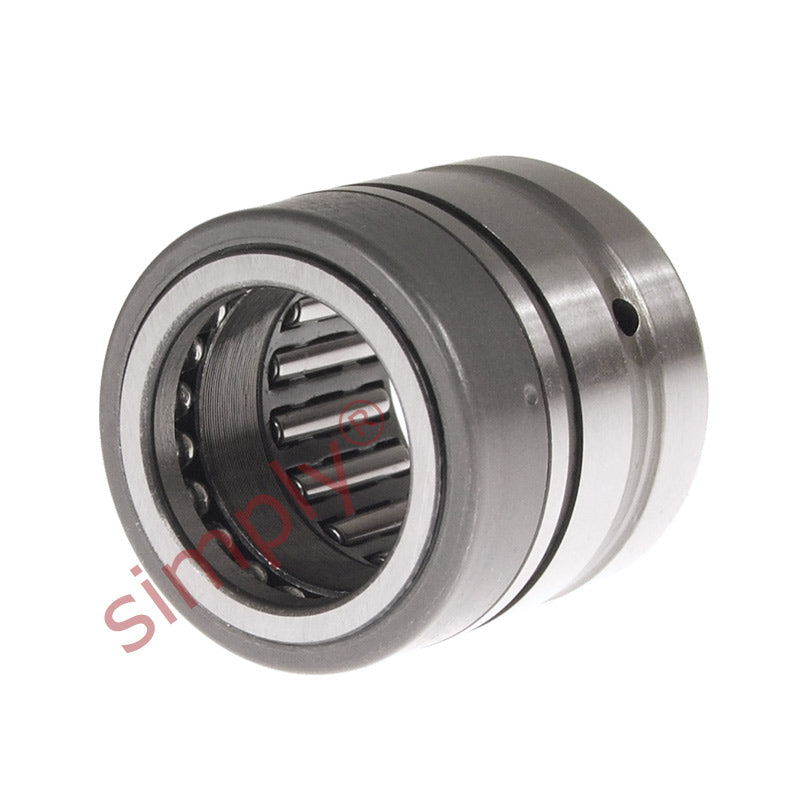

Major Brand NX12Z Needle Roller / Full Complement Thrust Ball Bearing 12x21x18mm
Major Brand NX12Z Needle Roller / Full Complement Thrust Ball Bearing 12x21x18mm
Regular price
Rs. 3,893.05
Regular price
Sale price
Rs. 3,893.05
Taxes included.
In stock
Price Break
10+
Rs. 3,464.81
19+
Rs. 3,270.16
29+
Rs. 3,231.23
39+
Rs. 3,192.30
49+
Rs. 3,153.37
74+
Rs. 3,114.44
99+
Rs. 2,919.79
199+
Rs. 2,880.86
249+
Rs. 2,841.93
499+
Rs. 2,803.00
999+
Rs. 2,725.14
Share this product
Description
Description
NX..Z Series Needle Roller / Ball Thrust Combination: Of a non separable design has a closed cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication and the cover serves to retain the grease. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 18mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 21mm |
| C | 18mm |
| Dynamic load | 5500 N |
| Static load | 5400 N |
| Axial dynamic load | 5270 N |
| Axial static load | 9650 N |
| Fatigue load limit radial Pu | 610 N |
| Fatigue load limit axial Pu | 355 N |
| Min load factor A | 0.48 |
| Speed in grease | 6000 rpm |
| C1 | 4.7mm |
| d | 12mm |
| r1r2 min | 0.3mm |
| da | 16.5mm |
| Da max | 19mm |
| Ca | 10mm |
| ra max | 0.3mm |
| di | 8mm |
| F | 12mm |
| Bi | 10mm |
| Inner Ring | IR8x12x10 |
| Retaining Ring | SW21 |
| Weight | 28 g |
