SKU: NUTR210/3AS-NTN

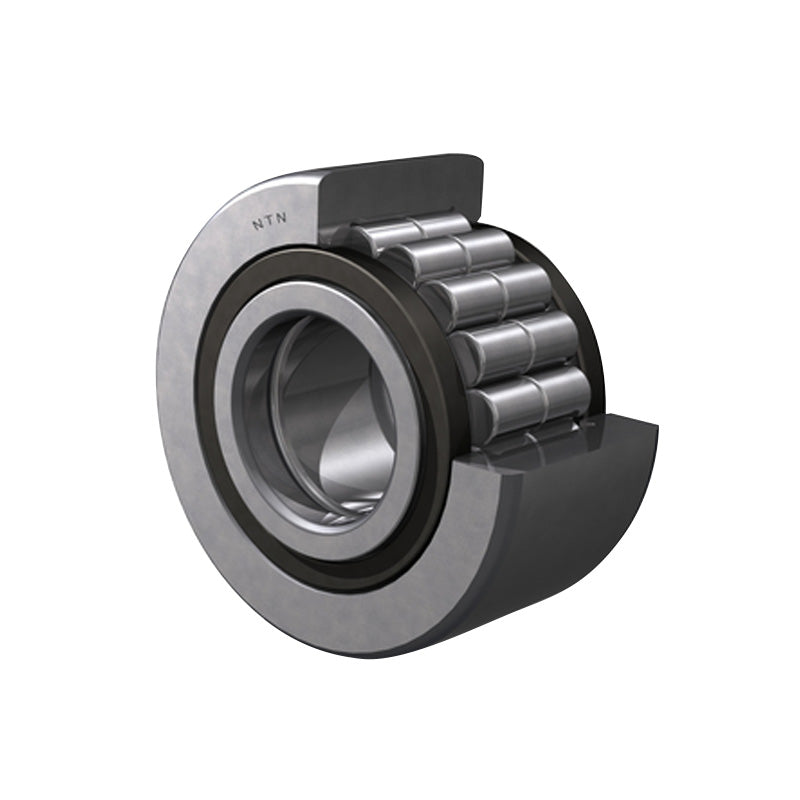

NTN NUTR210/3AS Yoke Type Track Roller with Inner Race 50x90x30mm
NTN NUTR210/3AS Yoke Type Track Roller with Inner Race 50x90x30mm
Regular price
Rs. 8,755.20
Regular price
Sale price
Rs. 8,755.20
Taxes included.
In stock
Price Break
10+
Rs. 7,792.13
19+
Rs. 7,354.37
29+
Rs. 7,266.82
39+
Rs. 7,179.26
49+
Rs. 7,091.71
74+
Rs. 7,004.16
99+
Rs. 6,566.40
199+
Rs. 6,478.85
249+
Rs. 6,391.30
499+
Rs. 6,303.74
999+
Rs. 6,128.64
Description
Description
NTN NUTR Type Track Rollers: These track rollers are heavy-duty cam followers designed for maximum load capacity and durability in demanding industrial environments. Built with a full complement of cylindrical rollers and a thick-walled outer ring, these bearings offer exceptional resistance to shock loads and deformation. The NUTR series includes integral seals to retain lubrication and keep out contaminants, ensuring long service life and smooth operation. Ideal for applications such as conveyors, cam drives, guide systems, and heavy machinery.
Benefits: Heavy duty, long service life, smooth and reliable
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 30mm
Technical
Technical
| d - Inside diameter | 50mm |
|---|---|
| D - Outside diameter | 90mm |
| C - Outer ring width | 30mm |
| F - Under roller diameter | 57mm |
| B - Bearing width | 32mm |
| e - Inlet diameter | 60mm |
| R - Track roller radius | 500mm |
| rs - Minimum fillet radius | 0.6mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 92 kN |
| C0r - Static load rating | 137 kN |
| Track load capacity | 10.4 kN |
| N - Grease lubrication limit speed | 1800 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
