SKU: NUTR1747X-MB

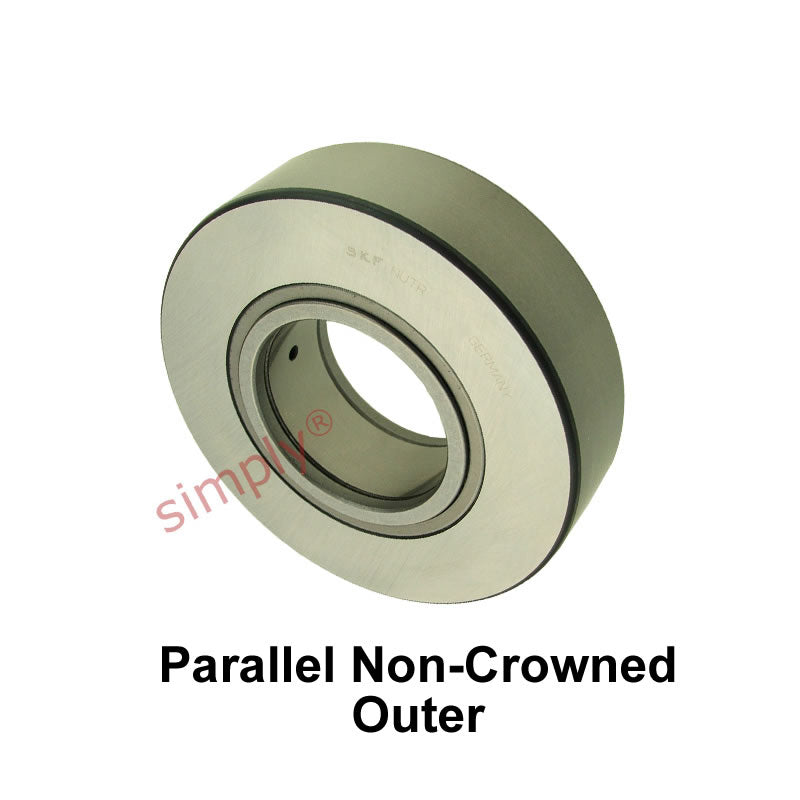

Major Brand NUTR1747X Support Roller With Axial Guidance Parallel Non-Crowned Outer 17x47x21mm
Major Brand NUTR1747X Support Roller With Axial Guidance Parallel Non-Crowned Outer 17x47x21mm
Regular price
Rs. 10,941.76
Regular price
Sale price
Rs. 10,941.76
Taxes included.
In stock
Price Break
10+
Rs. 9,738.17
19+
Rs. 9,191.08
29+
Rs. 9,081.66
39+
Rs. 8,972.24
49+
Rs. 8,862.83
74+
Rs. 8,753.41
99+
Rs. 8,206.32
199+
Rs. 8,096.90
249+
Rs. 7,987.48
499+
Rs. 7,878.07
999+
Rs. 7,659.23
Description
Description
NUTR Axial Guidance Support Rollers: This type of support roller incorporates a full complement needle roller arrangement and permits high loads. Axial support is provided by two loose flange rings via the roller complement. They are able to accommodate heavy radial and axial loads and relatively high speed operation but will require frequent re-lubrication. For heavy shock load applications the NUTR series with 4 and 5 figure denominations should be used. NUTR rollers have an enhanced roller profile to enable better stress distribution. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 21mm |
| C | 20mm |
| d1 | 22mm |
| r min | 1mm |
| r1 min | 0.5mm |
| Speed rating | 5500 rpm |
| Basic dynamic load | 22000 N |
| Basic static load | 27000 N |
| Fatigue load limit Pu | 3050 N |
| Max radial dynamic force | 30000 N |
| Max radial static force | 43000 N |
| Weight | 220 g |
