SKU: NUP2218-EU

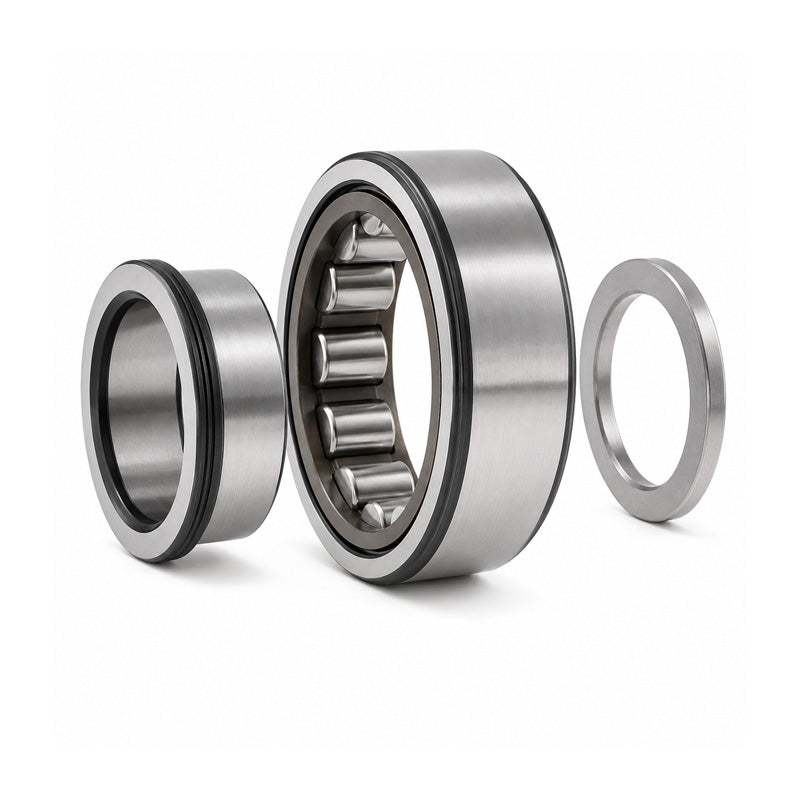

NUP2218 Budget Single Row Cylindrical Roller Bearing 90x160x40mm
NUP2218 Budget Single Row Cylindrical Roller Bearing 90x160x40mm
Regular price
Rs. 22,288.77
ex VAT
Regular price
Sale price
Rs. 22,288.77
ex VAT
In stock
Price Break
10+
Rs. 19,837.01
19+
Rs. 18,722.57
29+
Rs. 18,499.68
39+
Rs. 18,276.79
49+
Rs. 18,053.90
74+
Rs. 17,831.02
99+
Rs. 16,716.58
199+
Rs. 16,493.69
249+
Rs. 16,270.80
499+
Rs. 16,047.91
999+
Rs. 15,602.14
Couldn't load pickup availability
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 40mm |
| Dynamic load C | 280 kN |
| Static load Co | 315 kN |
| Fatigue load limit Pu | 39 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5000 rpm |
| Weight | 3.3 kg |
| d1 | 114mm |
| D1 | 140mm |
| F, E | 107mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| da min | 101mm |
| db min | 117mm |
| Da max | 149mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
