SKU: NUP217-EU

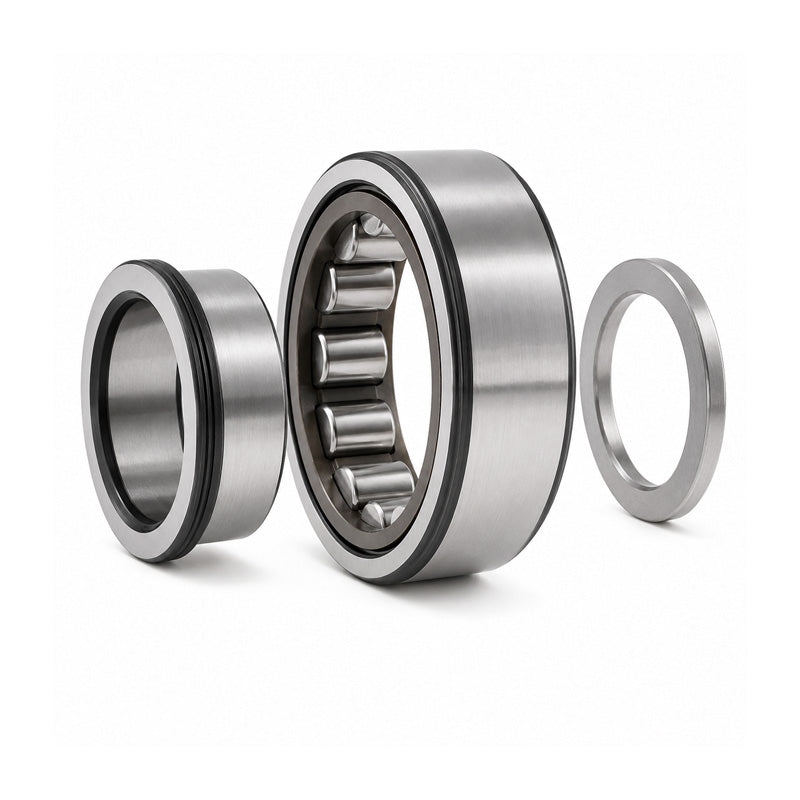

NUP217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm
NUP217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm
Regular price
Rs. 14,434.69
ex VAT
Regular price
Sale price
Rs. 14,434.69
ex VAT
In stock
Price Break
10+
Rs. 12,846.87
19+
Rs. 12,125.14
29+
Rs. 11,980.79
39+
Rs. 11,836.45
49+
Rs. 11,692.10
74+
Rs. 11,547.75
99+
Rs. 10,826.02
199+
Rs. 10,681.67
249+
Rs. 10,537.32
499+
Rs. 10,392.98
999+
Rs. 10,104.28
Couldn't load pickup availability
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| Dynamic load C | 190 kN |
| Static load Co | 200 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5300 rpm |
| Weight | 2 kg |
| Cage options | J.ML |
| d1 | 107mm |
| D1 | 131mm |
| F, E | 100.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| da min | 96mm |
| db min | 110mm |
| Da max | 139mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
