SKU: NU332-E-M1-C3

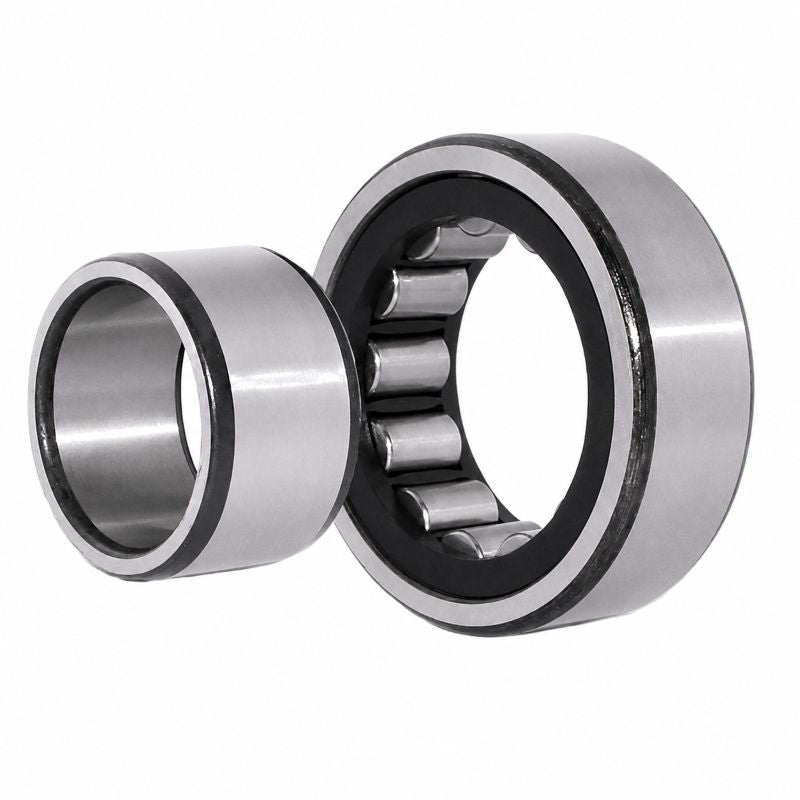

NU332-E-M1-C3 Cylindrical Roller Bearing with Cage 160x340x68mm - Allow 2-3 Days
NU332-E-M1-C3 Cylindrical Roller Bearing with Cage 160x340x68mm - Allow 2-3 Days
Regular price
Rs. 346,136.61
ex VAT
Regular price
Sale price
Rs. 346,136.61
ex VAT
In stock
Price Break
2+
Rs. 328,829.78
5+
Rs. 311,522.95
10+
Rs. 294,216.12
15+
Rs. 276,909.29
20+
Rs. 269,986.56
30+
Rs. 263,063.82
50+
Rs. 228,450.16
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 340mm
- Width:
- 68mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 160 |
|---|---|
| D | 340 |
| B | 68 |
| r min | 4 |
| r1 min | 4 |
| s | 5.6 |
| E | 300 |
| F | 204 |
| D1 | 286 |
| da min | 177 |
| da max | 200 |
| db min | 211 |
| Da max | 323 |
| ra max | 3 |
| ra1 max | 3 |
| Dynamic load | 865000 N |
| Static load | 1060000 N |
| Fatigue limit load | 96000 N |
| Limiting speed | 3000 rpm |
| Reference speed | 1790 rpm |
| Weight | 31.8 kg |
