SKU: NU315ECP/VL0241-SKF

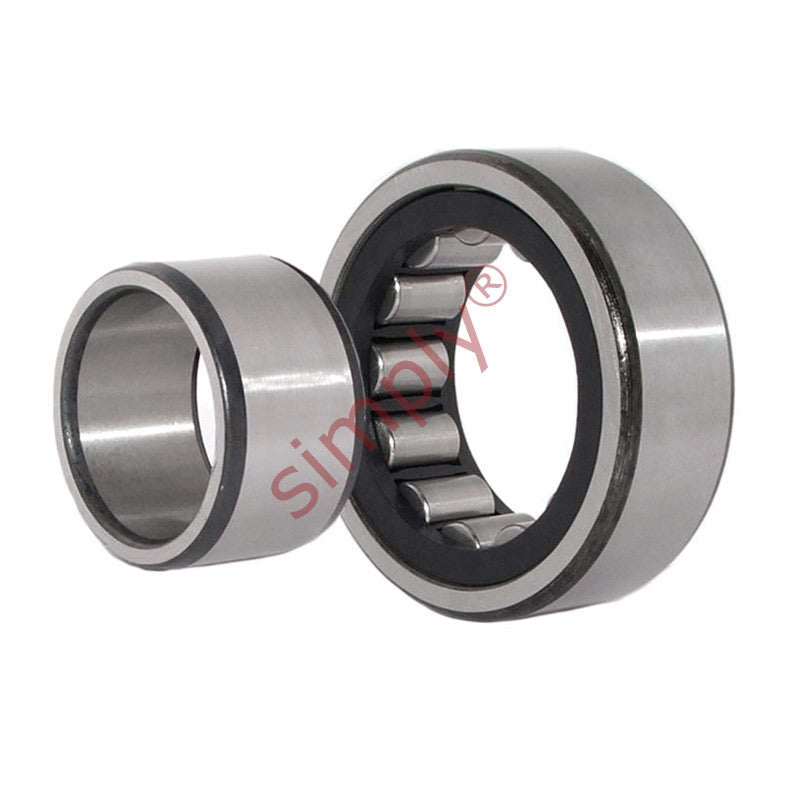

SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
SKF NU315ECPVL0241 Insocoat Cylindrical Roller Bearing 75x160x37mm
Regular price
Rs. 128,557.20
ex VAT
Regular price
Sale price
Rs. 128,557.20
ex VAT
In stock
Price Break
10+
Rs. 114,415.91
19+
Rs. 107,988.05
29+
Rs. 106,702.48
39+
Rs. 105,416.90
49+
Rs. 104,131.33
74+
Rs. 102,845.76
99+
Rs. 96,417.90
199+
Rs. 95,132.33
249+
Rs. 93,846.76
499+
Rs. 92,561.18
999+
Rs. 89,990.04
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 280 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 33.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.3 kg |
| D1 | 136mm |
| F | 95mm |
| r1r2 min | 2.1mm |
| r1r4 min | 2.1mm |
| s | 1.8mm |
| da min | 87mm |
| da max | 92mm |
| db min | 97mm |
| Da min | 141mm |
| Da max | 148mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
