SKU: NU310ECJ/C3-SKF

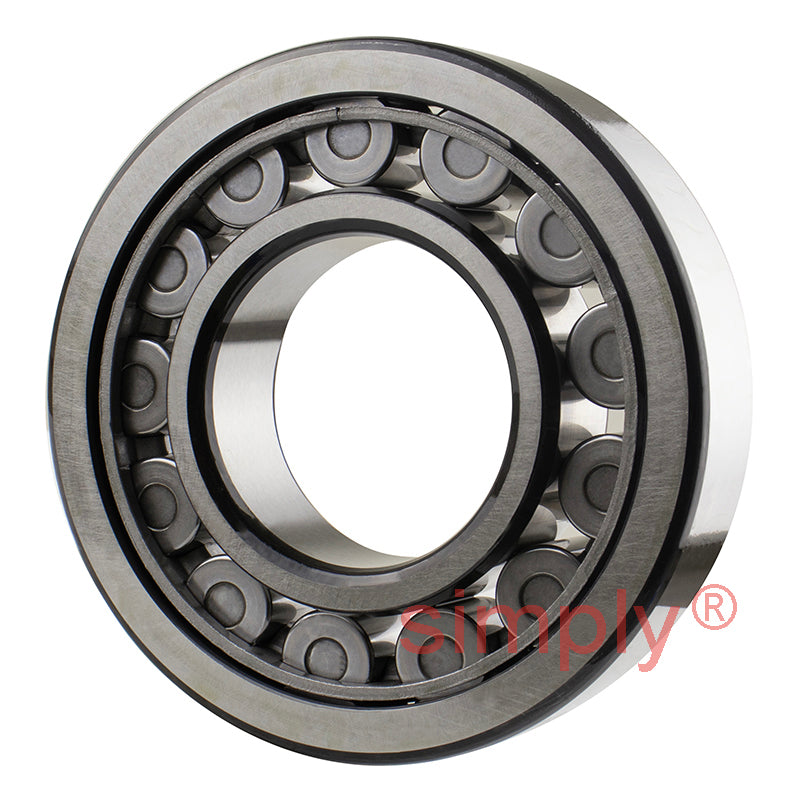

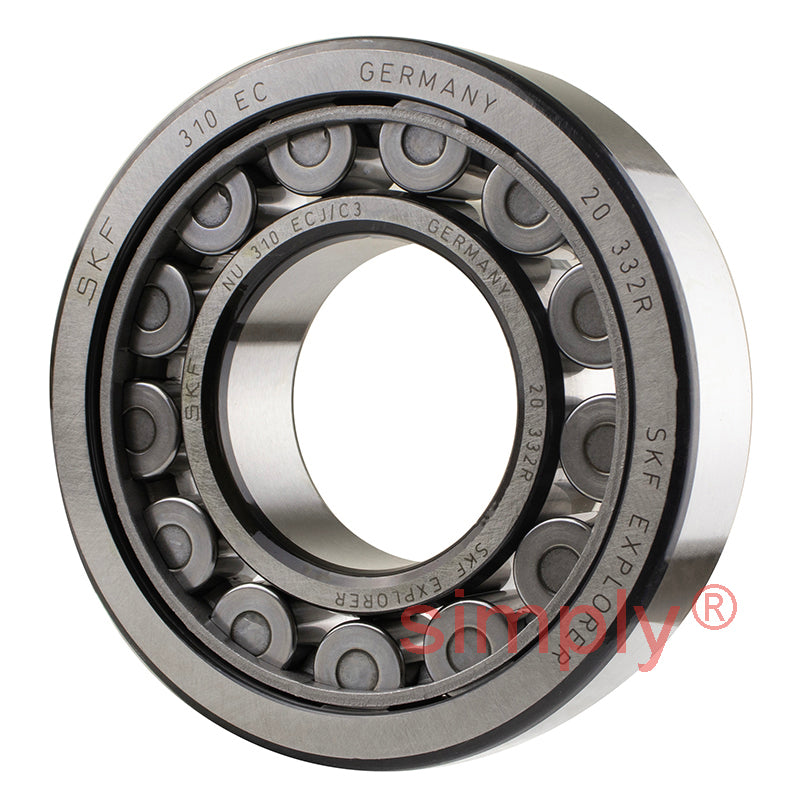

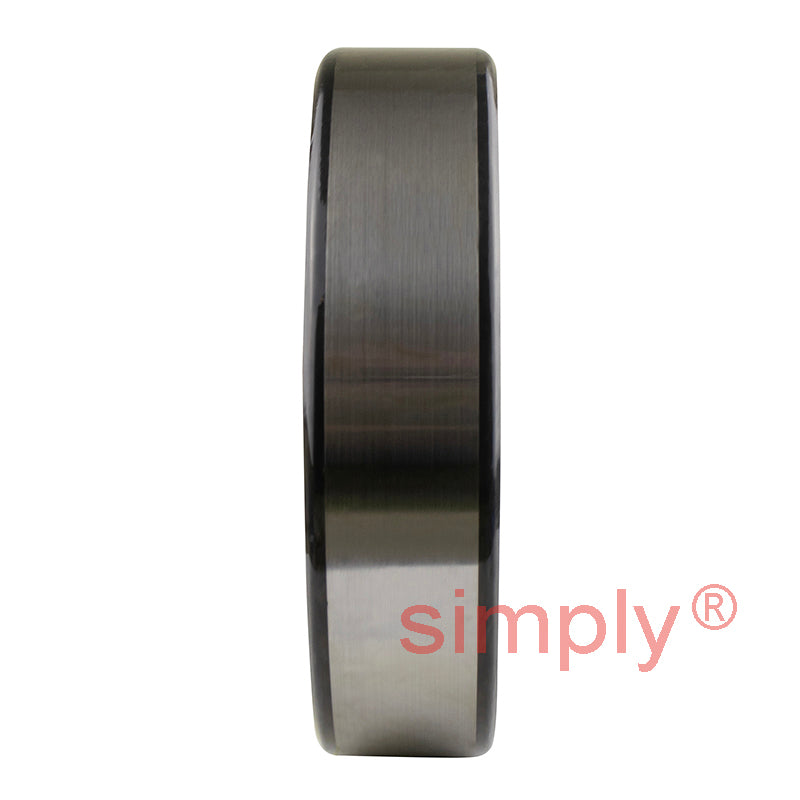

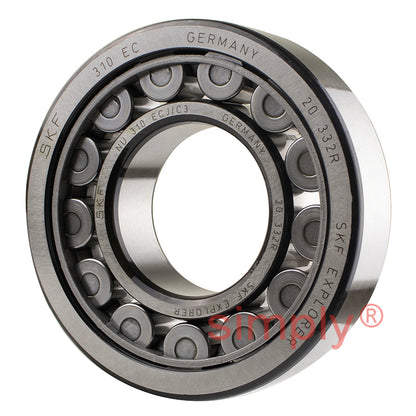

SKF NU310ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 50x110x27mm
SKF NU310ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 50x110x27mm
Regular price
Rs. 12,824.92
Regular price
Sale price
Rs. 12,824.92
Taxes included.
In stock
Price Break
10+
Rs. 11,414.18
19+
Rs. 10,772.93
29+
Rs. 10,644.68
39+
Rs. 10,516.43
49+
Rs. 10,388.19
74+
Rs. 10,259.94
99+
Rs. 9,618.69
199+
Rs. 9,490.44
249+
Rs. 9,362.19
499+
Rs. 9,233.94
999+
Rs. 8,977.44
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| D1 | 92.1mm |
| B | 27mm |
| F | 65mm |
| Dynamic load | 127 kN |
| Static load | 112 kN |
| Fatigue load | 15 kN |
| Reference speed | 6700rpm |
| Limiting speed | 8000rpm |
| r1,2min | 2mm |
| r3,4min | 2mm |
| s | 1.9mm |
| Weight | 1.16kg |
