SKU: NU2252MA-EU

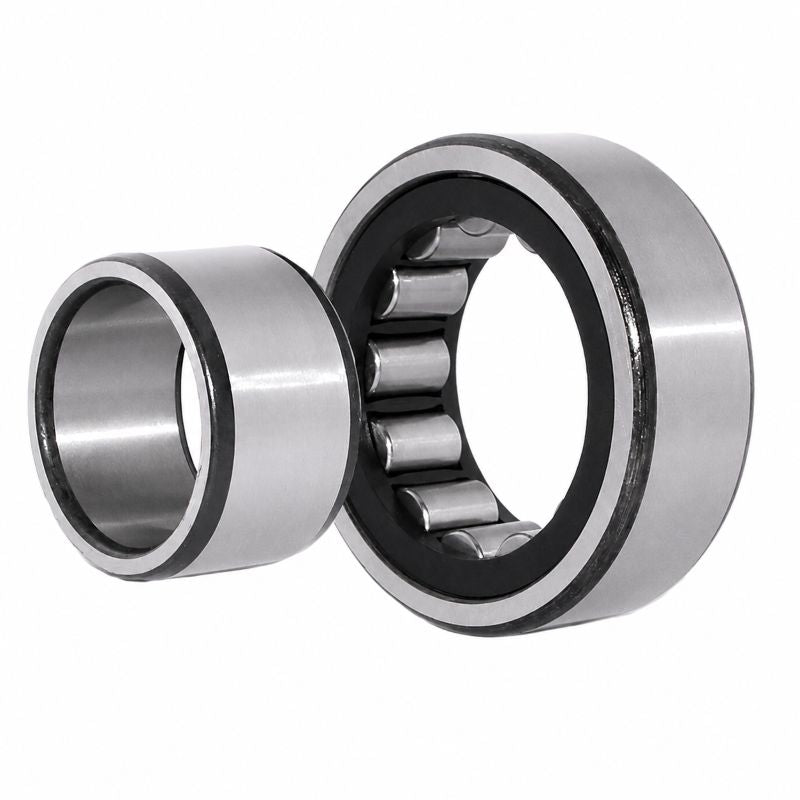

NU2252 Budget Single Row Cylindrical Roller Bearing 260x480x130mm
NU2252 Budget Single Row Cylindrical Roller Bearing 260x480x130mm
Regular price
Rs. 743,083.12
ex VAT
Regular price
Sale price
Rs. 743,083.12
ex VAT
In stock
Price Break
10+
Rs. 661,343.98
19+
Rs. 624,189.82
29+
Rs. 616,758.99
39+
Rs. 609,328.16
49+
Rs. 601,897.33
74+
Rs. 594,466.50
99+
Rs. 557,312.34
199+
Rs. 549,881.51
249+
Rs. 542,450.68
499+
Rs. 535,019.85
999+
Rs. 520,158.18
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 480mm
- Width:
- 130mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 260mm |
|---|---|
| D | 480mm |
| B | 130mm |
| Dynamic load C | 1790 kN |
| Static load Co | 3000 kN |
| Fatigue load limit Pu | 265 kN |
| Reference speed | 1300 rpm |
| Limiting speed | 2000 rpm |
| Weight | 110 kg |
| d1 | mm |
| D1 | 397mm |
| F, E | 320mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| s | 4.3mm |
| da min | 280mm |
| da max | 309mm |
| db min | 324mm |
| Da max | 460mm |
| ra max | 4mm |
| rb max | 4mm |
| kr | 0.2 |
