SKU: NU1028ML-SKF

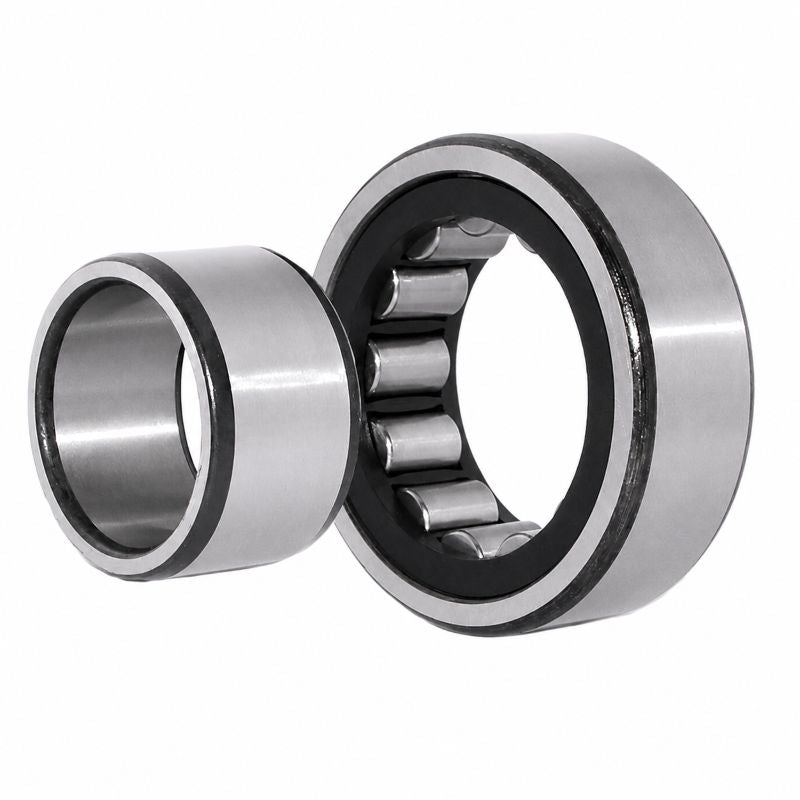

SKF NU1028ML Single Row Cylindrical Roller Bearing with Brass Cage 140x210x33mm
SKF NU1028ML Single Row Cylindrical Roller Bearing with Brass Cage 140x210x33mm
Regular price
Rs. 59,256.05
Regular price
Sale price
Rs. 59,256.05
Taxes included.
In stock
Price Break
10+
Rs. 52,737.88
19+
Rs. 49,775.08
29+
Rs. 49,182.52
39+
Rs. 48,589.96
49+
Rs. 47,997.40
74+
Rs. 47,404.84
99+
Rs. 44,442.04
199+
Rs. 43,849.48
249+
Rs. 43,256.92
499+
Rs. 42,664.36
999+
Rs. 41,479.24
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 140mm |
|---|---|
| D | 210mm |
| B | 33mm |
| Dynamic load C | 172 kN |
| Static load Co | 245 kN |
| Fatigue load limit Pu | 27 kN |
| Reference speed | 3600 rpm |
| Limiting speed | 5300 rpm |
| Weight | 4.05 kg |
| Alt cage | M |
| D1 | 185mm |
| F,E | 158mm |
| r1r2 min | 2mm |
| r3r4 min | 1.1mm |
| S | 4.4mm |
| da min | 146mm |
| da max | 155mm |
| db | 161mm |
| Da max | 201mm |
| ra max | 2mm |
| rb max | 1mm |
| kr | 0.1 |
