SKU: NU1022M/C4VA301-SKF

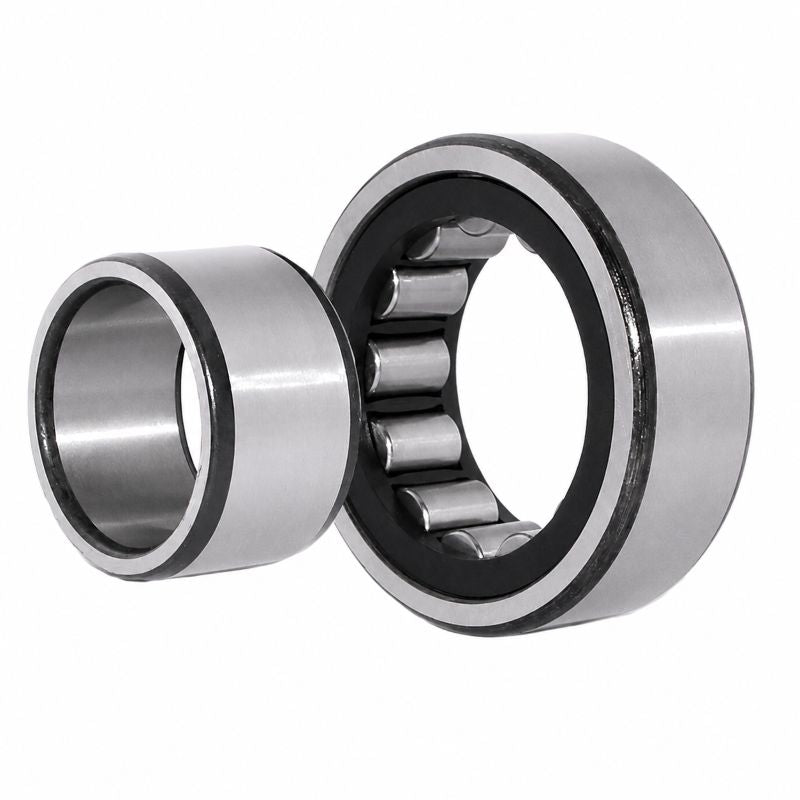

SKF NU1022MC4VA301 Single Row Cylindrical Roller Bearing with Brass Cage 110x170x28mm - Allow 2-3 Days
SKF NU1022MC4VA301 Single Row Cylindrical Roller Bearing with Brass Cage 110x170x28mm - Allow 2-3 Days
Regular price
Rs. 71,760.92
Regular price
Sale price
Rs. 71,760.92
Taxes included.
In stock
Price Break
2+
Rs. 68,172.87
5+
Rs. 64,584.83
10+
Rs. 60,996.78
15+
Rs. 57,408.74
20+
Rs. 55,973.52
30+
Rs. 54,538.30
50+
Rs. 47,362.21
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| B | 28mm |
| Dynamic load C | 128 kN |
| Static load Co | 166 kN |
| Fatigue load limit Pu | 19.3 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 7000 rpm |
| Weight | 2.35 kg |
| Alt cage | M |
| D1 | 149mm |
| F,E | 125mm |
| r1r2 min | 2mm |
| r3r4 min | 1.1mm |
| S | 3.8mm |
| da min | 116mm |
| da max | 123mm |
| db | 128mm |
| Da max | 161mm |
| ra max | 2mm |
| rb max | 1mm |
| kr | 0.1 |
