SKU: NU1008ML-SKF

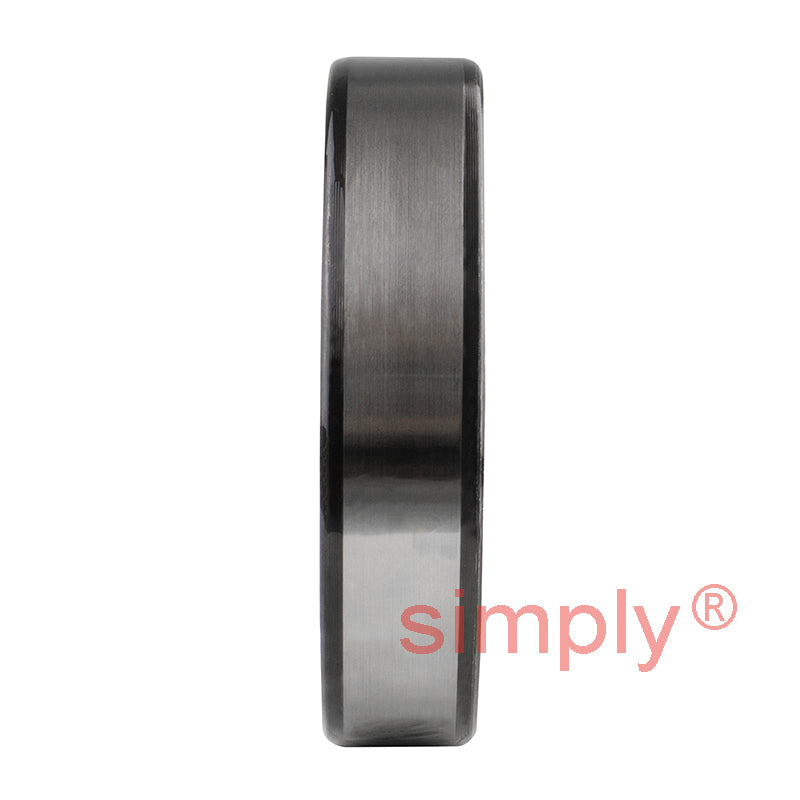

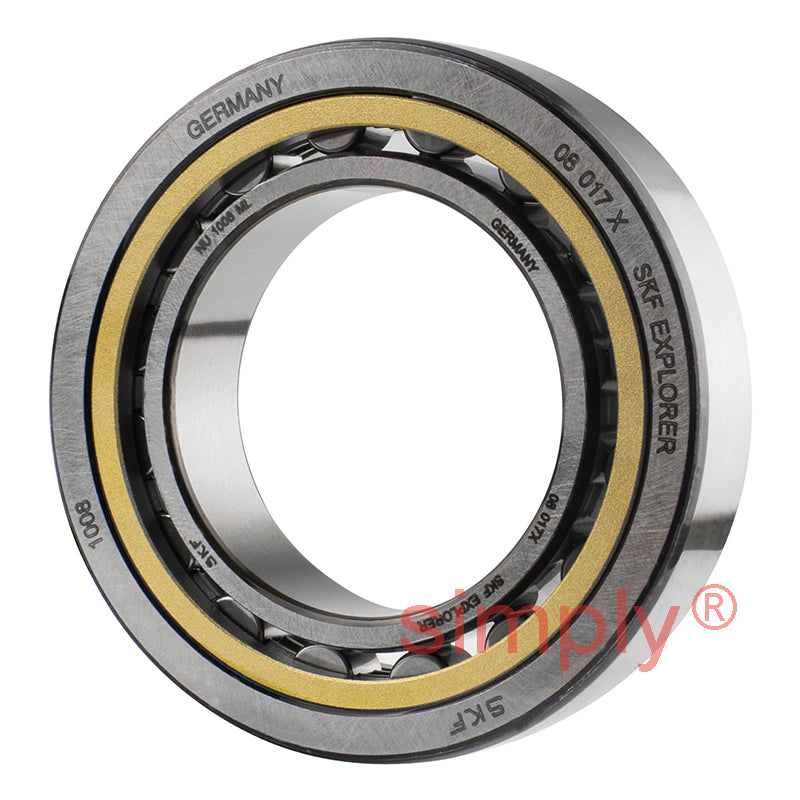

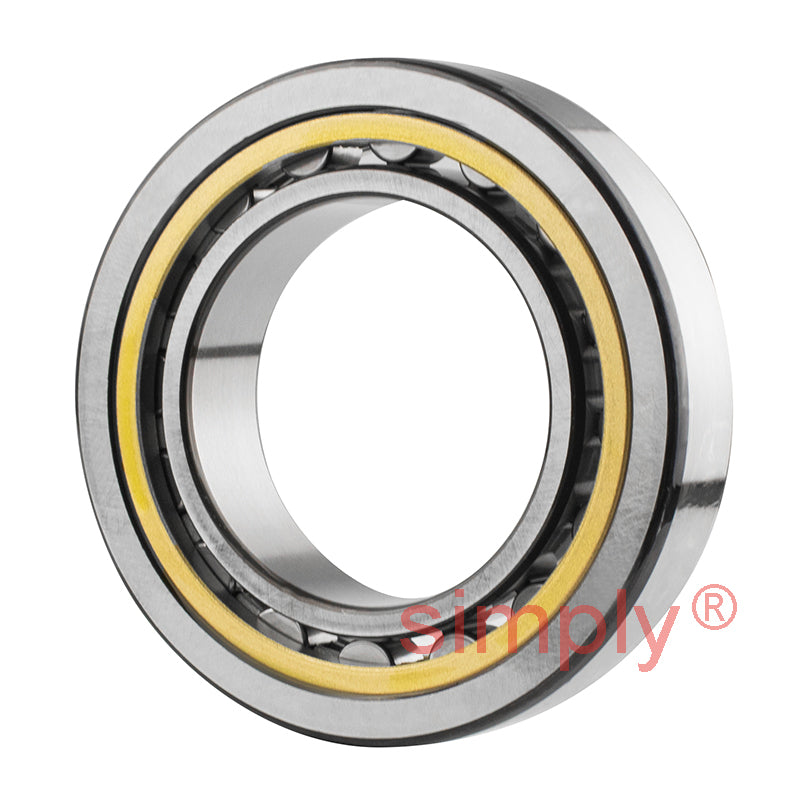

SKF NU1008ML Single Row Cylindrical Roller Bearing with Brass Cage 40x68x15mm
SKF NU1008ML Single Row Cylindrical Roller Bearing with Brass Cage 40x68x15mm
Regular price
Rs. 22,442.90
ex VAT
Regular price
Sale price
Rs. 22,442.90
ex VAT
In stock
Price Break
10+
Rs. 19,974.18
19+
Rs. 18,852.04
29+
Rs. 18,627.61
39+
Rs. 18,403.18
49+
Rs. 18,178.75
74+
Rs. 17,954.32
99+
Rs. 16,832.18
199+
Rs. 16,607.75
249+
Rs. 16,383.32
499+
Rs. 16,158.89
999+
Rs. 15,710.03
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| Dynamic load C | 25.1 kN |
| Static load Co | 26 kN |
| Fatigue load limit Pu | 3 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.23 kg |
| D1 | 57.6mm |
| F,E | 47mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 2.4mm |
| da min | 43.2mm |
| da max | 45mm |
| db | 49mm |
| Da max | 63.4mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.1 |
