SKU: NTA613-TRA613

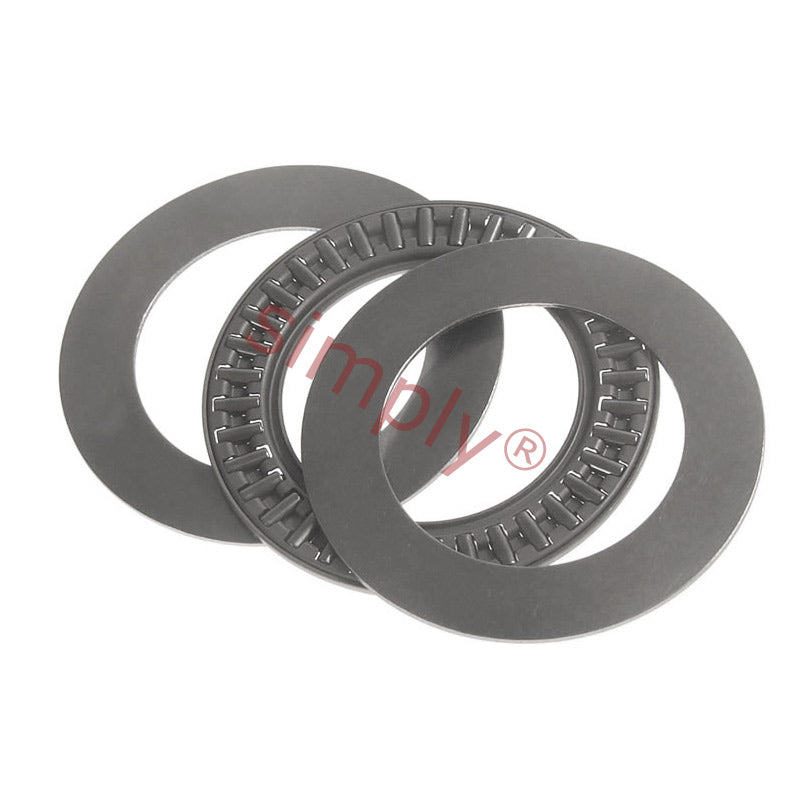

NTA613 Needle Roller Cage Thrust Assembly with 2 TRA613 Washers 0.375x0.813x0.1406 inch
NTA613 Needle Roller Cage Thrust Assembly with 2 TRA613 Washers 0.375x0.813x0.1406 inch
Regular price
Rs. 1,405.69
ex VAT
Regular price
Sale price
Rs. 1,405.69
ex VAT
Equivalent to: NTC613+TRA613
In stock
Price Break
10+
Rs. 1,251.06
19+
Rs. 1,180.78
29+
Rs. 1,166.72
39+
Rs. 1,152.67
49+
Rs. 1,138.61
74+
Rs. 1,124.55
99+
Rs. 1,054.27
199+
Rs. 1,040.21
249+
Rs. 1,026.15
499+
Rs. 1,012.10
999+
Rs. 983.98
Couldn't load pickup availability
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC613+TRA613
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 0.375 inch |
|---|---|
| D | 0.813 inch |
| Eb | 0.0806 inch |
| Dw | 0.46 inch |
| dw | 0.71 inch |
| Dynamic load | 60.5 kN |
| Static load | 14.32 kN |
| Limiting speed | 22000 rpm |
| Weight | 0.001816 kg |
| Washer | Dimensions |
| d | 0.375 inch |
| d1 | 0.812 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 0.372 inch |
| Pilot max | 0.375 inch |
| Dia to clear washer | 0.844 inch |
| Weight | 0.003 lbs |
