SKU: NTA4860-TRA4860

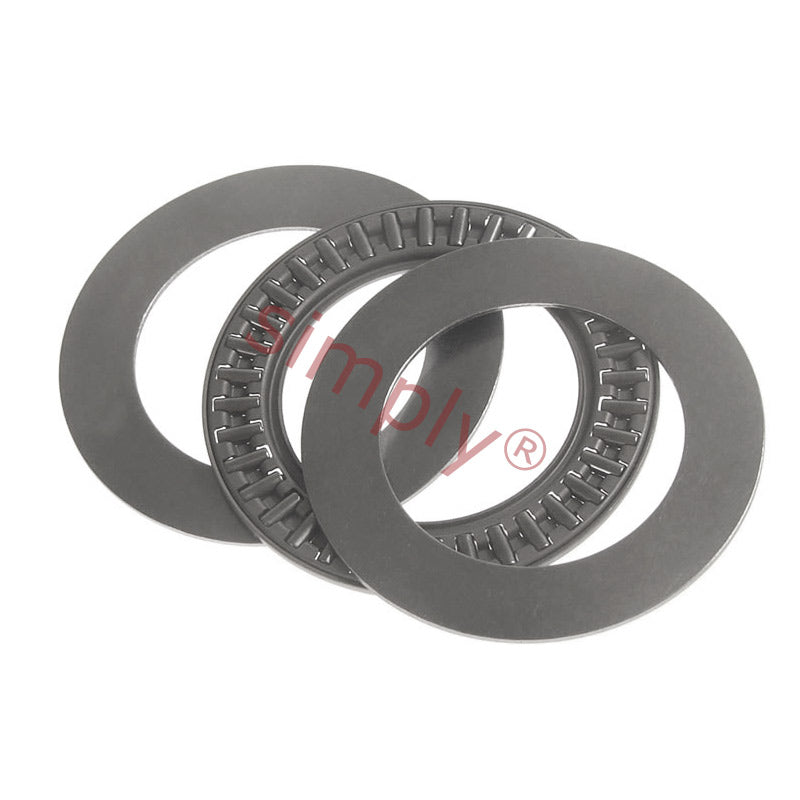

NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
NTA4860 Needle Roller Cage Thrust Assembly with 2 TRA4860 Washers 3x3.75x0.1406 inch
Regular price
Rs. 2,013.54
ex VAT
Regular price
Sale price
Rs. 2,013.54
ex VAT
Equivalent to: NTC4860+TRA4860
In stock
Price Break
10+
Rs. 1,792.05
19+
Rs. 1,691.37
29+
Rs. 1,671.24
39+
Rs. 1,651.10
49+
Rs. 1,630.97
74+
Rs. 1,610.83
99+
Rs. 1,510.16
199+
Rs. 1,490.02
249+
Rs. 1,469.88
499+
Rs. 1,449.75
999+
Rs. 1,409.48
Couldn't load pickup availability
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC4860+TRA4860
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Width:
- 3.57mm = 0.141 (9/64) inch

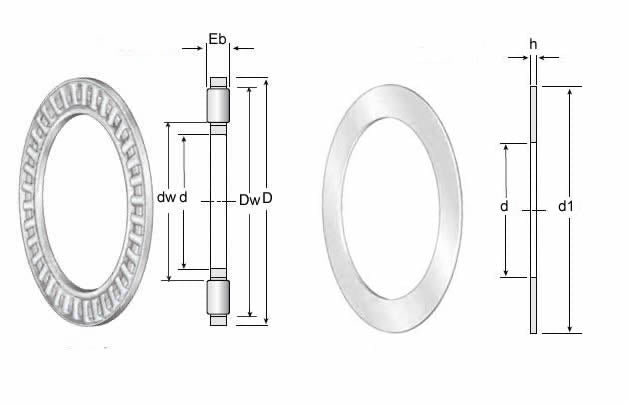

Technical
Technical
| d | 3 inch |
|---|---|
| D | 3.75 inch |
| Eb | 0.0806 inch |
| Dw | 3.09 inch |
| dw | 3.57 inch |
| Dynamic load | 26.96 kN |
| Static load | 172.10 kN |
| Limiting speed | 4400 rpm |
| Weight | 0.021792 kg |
| Washer | Dimensions |
| d | 3.000 inch |
| d1 | 3.75 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 2.997 inch |
| Pilot max | 3.000 inch |
| Dia to clear washer | 3.781 inch |
| Weight | 0.034 lbs |
