SKU: NP3-RHP

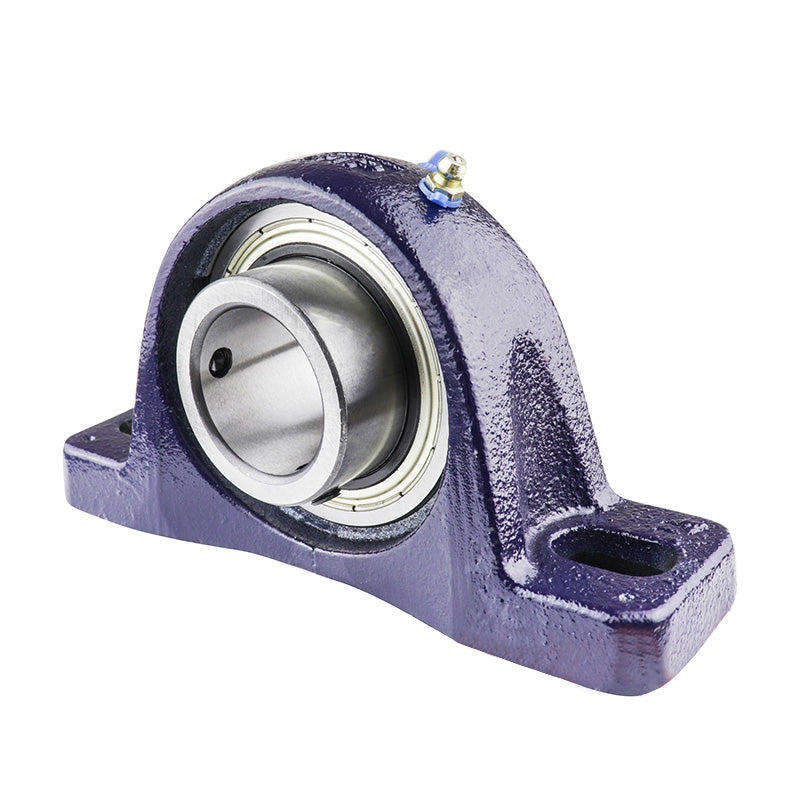

RHP NP3 Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Full Width Insert
RHP NP3 Two Bolt Cast Iron Pillow Block and 3 Bore Grub Screw Full Width Insert
Regular price
Rs. 32,386.56
ex VAT
Regular price
Sale price
Rs. 32,386.56
ex VAT
In stock
Price Break
10+
Rs. 28,824.04
19+
Rs. 27,204.71
29+
Rs. 26,880.84
39+
Rs. 26,556.98
49+
Rs. 26,233.11
74+
Rs. 25,909.25
99+
Rs. 24,289.92
199+
Rs. 23,966.05
249+
Rs. 23,642.19
499+
Rs. 23,318.32
999+
Rs. 22,670.59
Couldn't load pickup availability
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- NP
- Bolt Hole Centres:
- 8.11-8.976 inch
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 10.827 inch |
| H | 3.252 inch |
| H1 | 1.102 inch |
| H2 | 6.457 inch |
| J max | 8.976 inch |
| J min | 8.11 inch |
| G | 0.875 inch |
| A | 2.913 inch |
| A1 | 1.89 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-3G+insonly">1075-3G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
