SKU: NP3.7/16-RHP

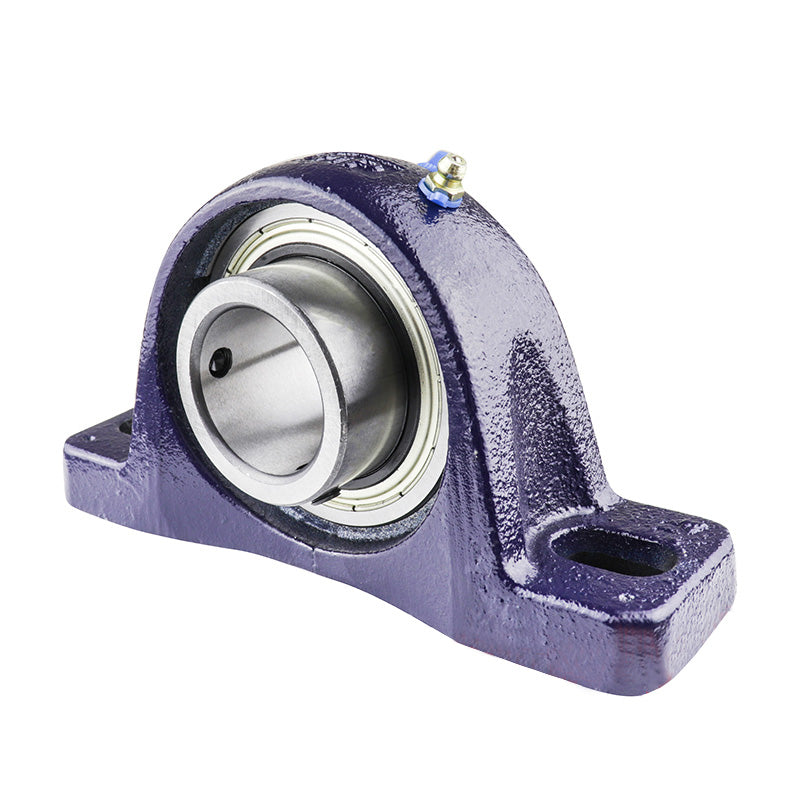

RHP NP3-7/16 Two Bolt Cast Iron Pillow Block and 3-7/16 Bore Grub Screw Full Width Insert
RHP NP3-7/16 Two Bolt Cast Iron Pillow Block and 3-7/16 Bore Grub Screw Full Width Insert
Regular price
Rs. 65,621.60
ex VAT
Regular price
Sale price
Rs. 65,621.60
ex VAT
In stock
Price Break
10+
Rs. 58,403.22
19+
Rs. 55,122.14
29+
Rs. 54,465.93
39+
Rs. 53,809.71
49+
Rs. 53,153.50
74+
Rs. 52,497.28
99+
Rs. 49,216.20
199+
Rs. 48,559.98
249+
Rs. 47,903.77
499+
Rs. 47,247.55
999+
Rs. 45,935.12
Couldn't load pickup availability
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 9.606-11.024 inch
Technical
Technical
| Bore | 3-7/16 inch |
|---|---|
| L | 12.874 inch |
| H | 4000 inch |
| H1 | 1.417 inch |
| H2 | 7.874 inch |
| J max | 11.024 inch |
| J min | 9.606 inch |
| G | 0.875 inch |
| A | 3.465 inch |
| A1 | 2.441 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 14.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a> |
| Casting group | 15 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
